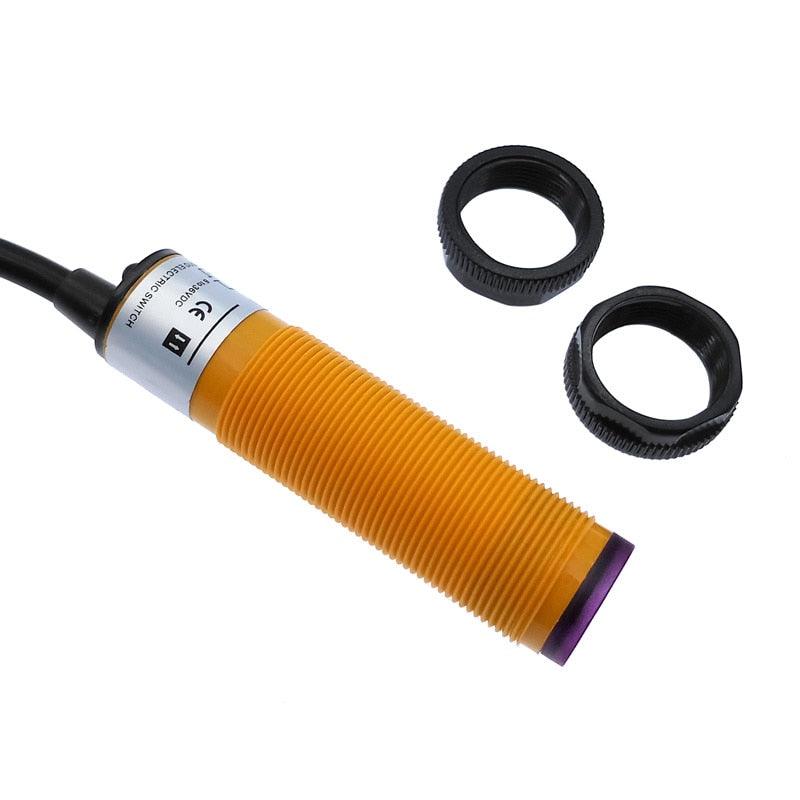

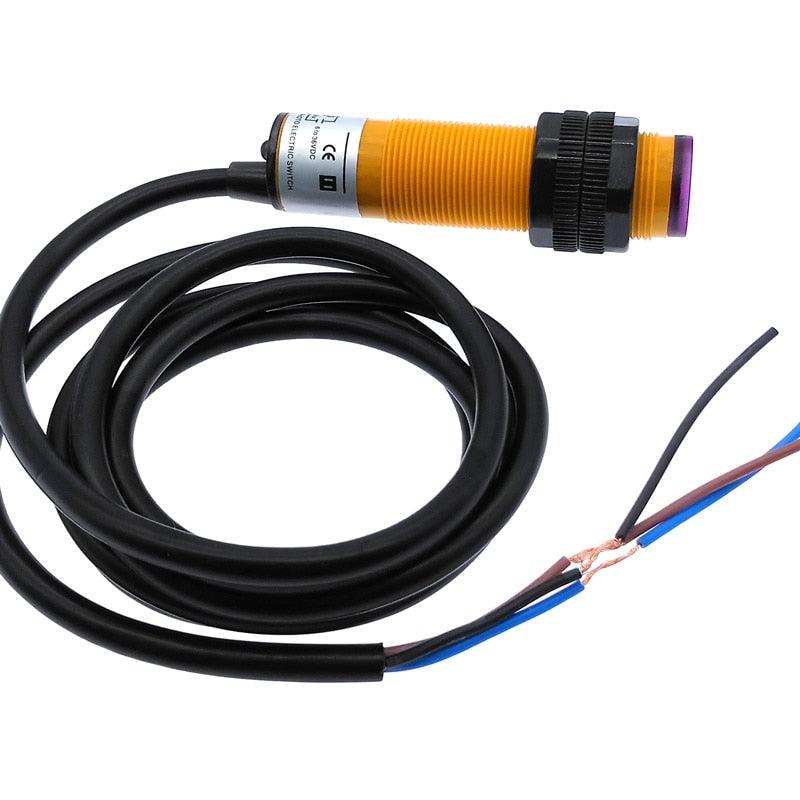

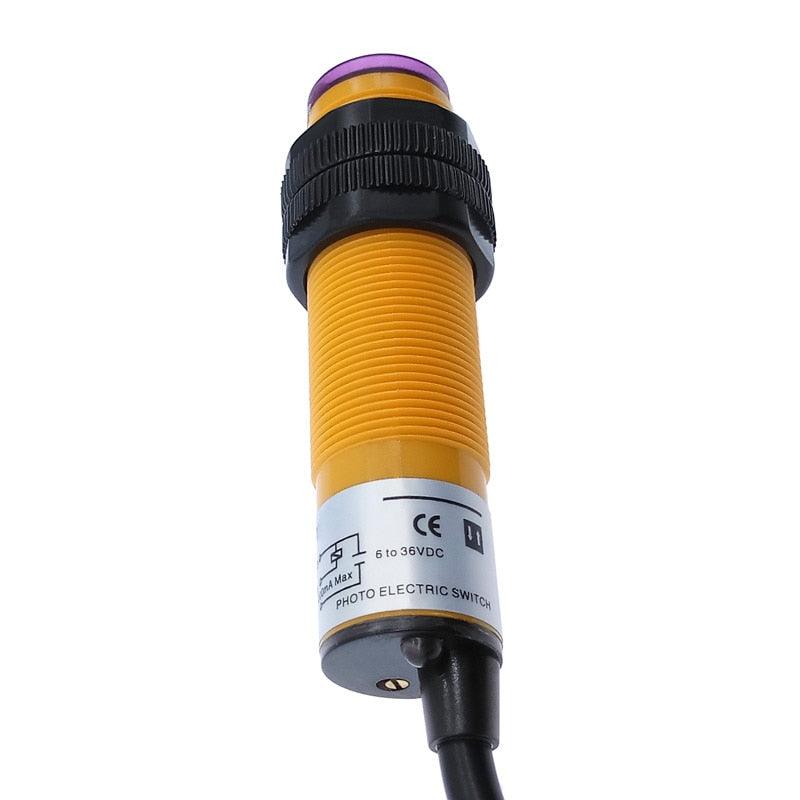

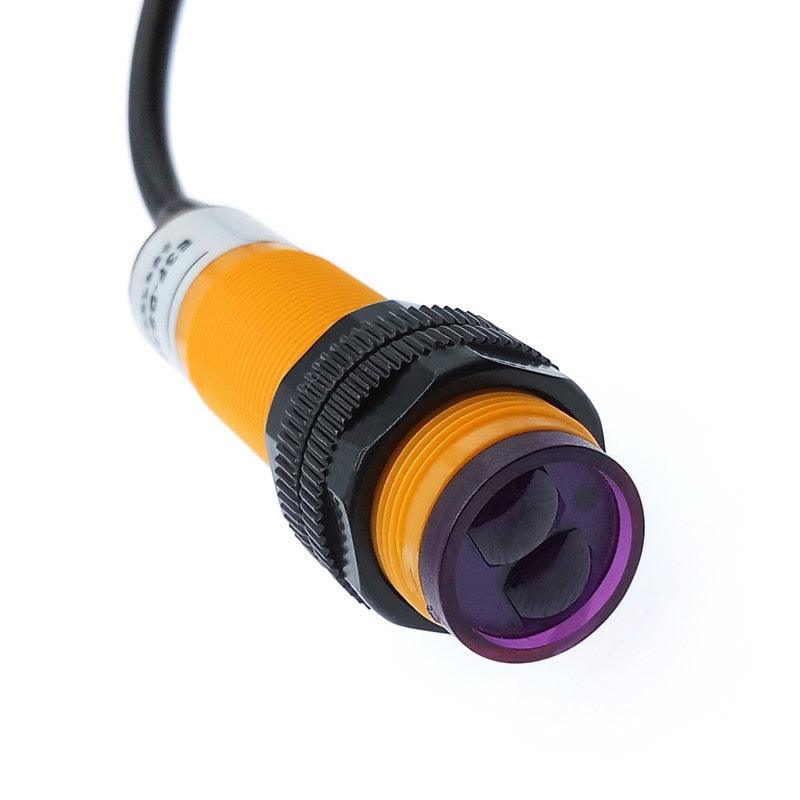

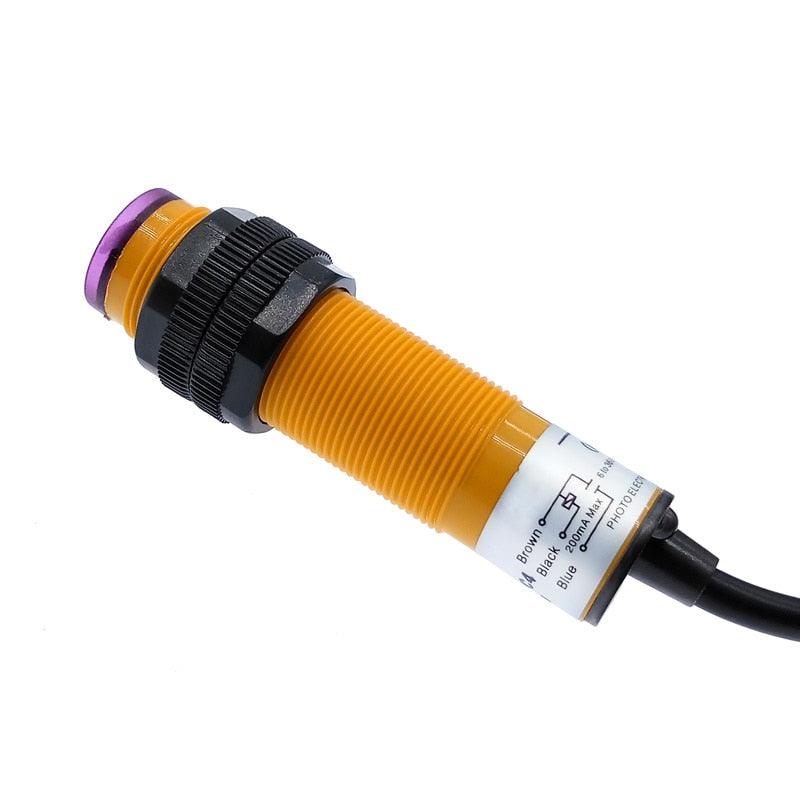

E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1
Regular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1
Warranty: 1 year
Switch Type: Photoelectric Switch
Origin: CN(Origin)
Model Number: E3F-DS30P1/P2/C4/C2
Material: Copper
Item Type: Switches
Features: DC5-36V
Current: 200mA
[Product name]: photoelectric switch

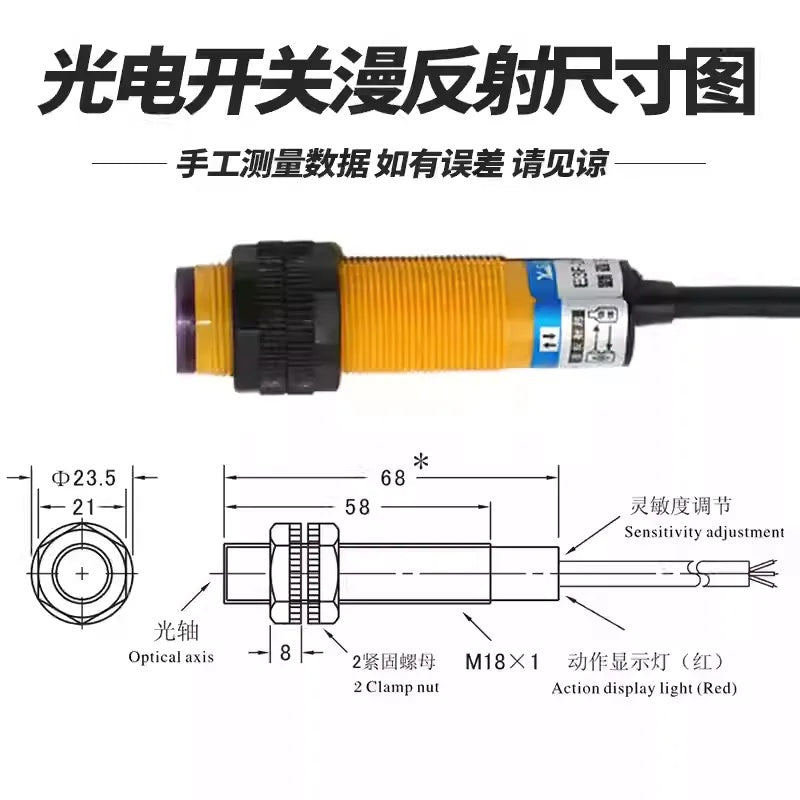

[Size]: 18mm
[Detection mode]: diffuse reflection type
[Detection range]: 10cm / 30cm
[Work voltage]: 5-36VDC / 90-250VAC

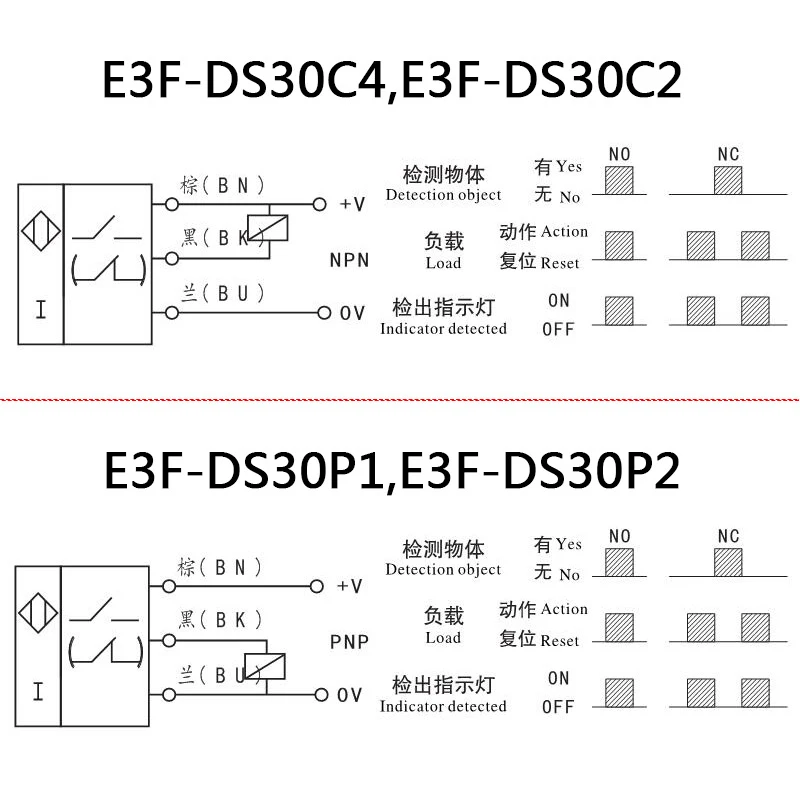

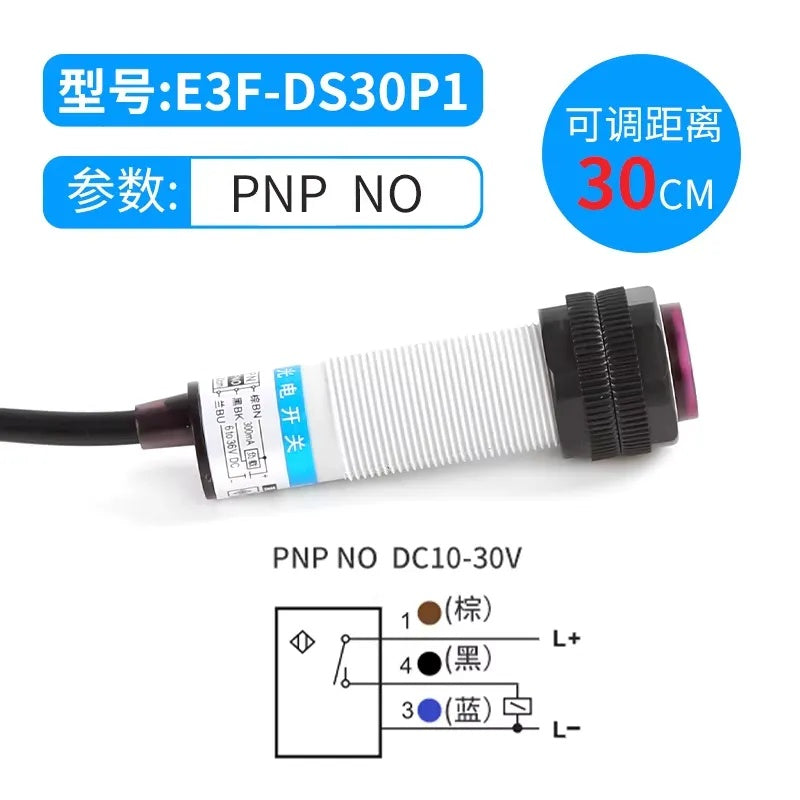

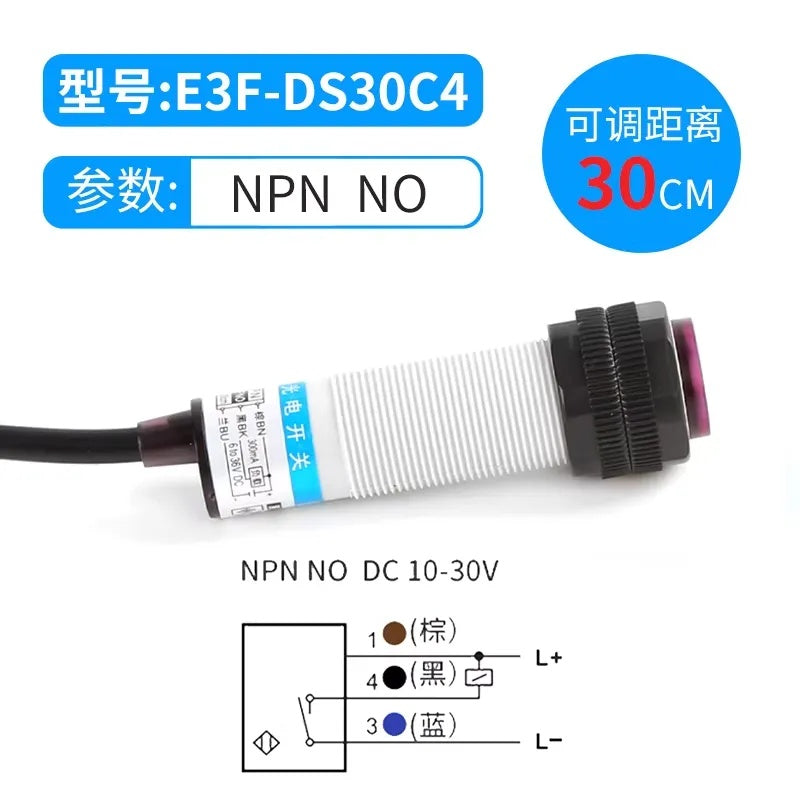

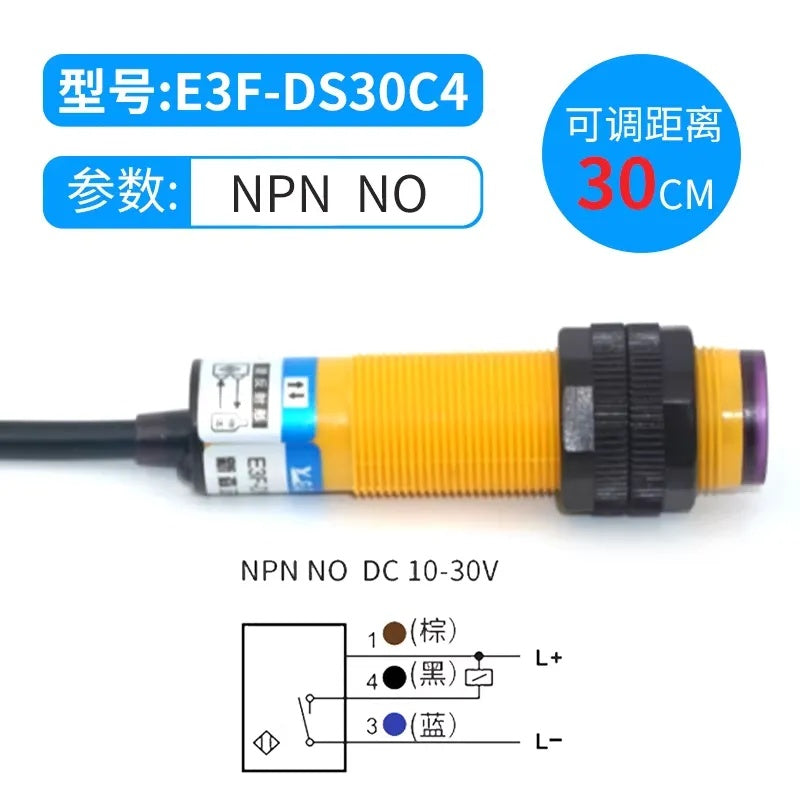

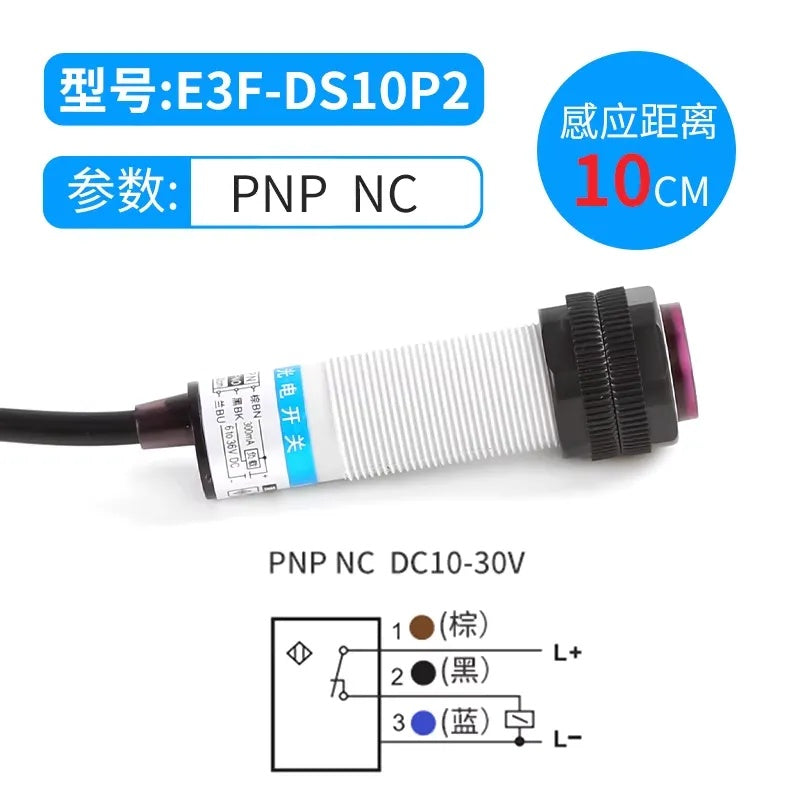

[Output form]: three line type
Diffuse reflection type photoelectric switch is made up of light projector and light receptor, which is one of standard configurations. When the light beam comes from the projuctor, the target creates diffuse reflection; when there is enough combination light back to the light receptor, the switch state will change; Effective operating distance depends on the reflectibe capacity of the target, as well as the surface property and color. Teh change capacity with sensitivity adjuster can assume compensation action; The equipment has lower consumption. When the optical sensor is made up of a single element, rough location can usually be achieved; Adopts the function of background rejection to regulate the measuring distance; sensitive to the dust on the target and sensitive to the changed reflective performance of the target.
