QM3G-50FH 5 Inch HMI PLC Combo Programmable Logic Controller with Touch Panel

$321.00 USD
$366.00 USD $321.00 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

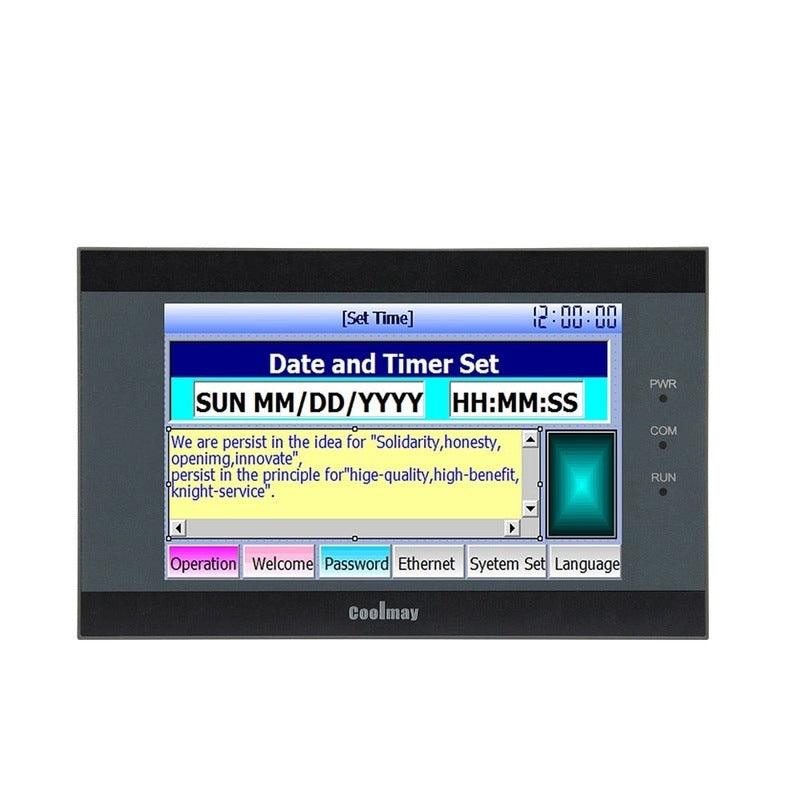

Coolmay 5 Inch HMI PLC Combo Programmable Logic Controller with Touch Panel

packing: carton

Type: 5 Inch

Resolution: 800*480

Product name: programmable logic controller

Power consumption: 5-7W

Origin: CN(Origin)

Motor Type: AC Motor

Model Number: QM3G-50FH-24MT-4AD2DA-A4-A4-485P

Certification: CE

Certificate: CE

Brand Name: Coolmay

Brand: Coolmay

Specifications

5 inch HMI PLC all in one, 12DI 12DO, transistor outputs, 4AI for 4-20mA, 2AO for 4-20mA, RS232, RS485 RTU protocol

Model: QM3G-50FH-24MT-4AD2DA-A4-A4-485P

Optional functions (please also order the optional functions if you need them on PLC):

Packing List

1x HMI PLC all in one

1x USB-232 cable

1x 232 PLC programming cable

1x type c programming cable

Free software download on website: www.coolmayplc.com

Features


  • lntegrate logic control, analog input and output, and HMl functions in one.

  • Support high-speed counting, high-speed pulse, communication port integrated.

  • Support arc and linear interpolation.

  • Support gesture operation, users can swipe up, down, left, and right to switch pages andexperience a true all-in-one machine.

  • Can be installed vertically or horizontally according to the actual situation on site.

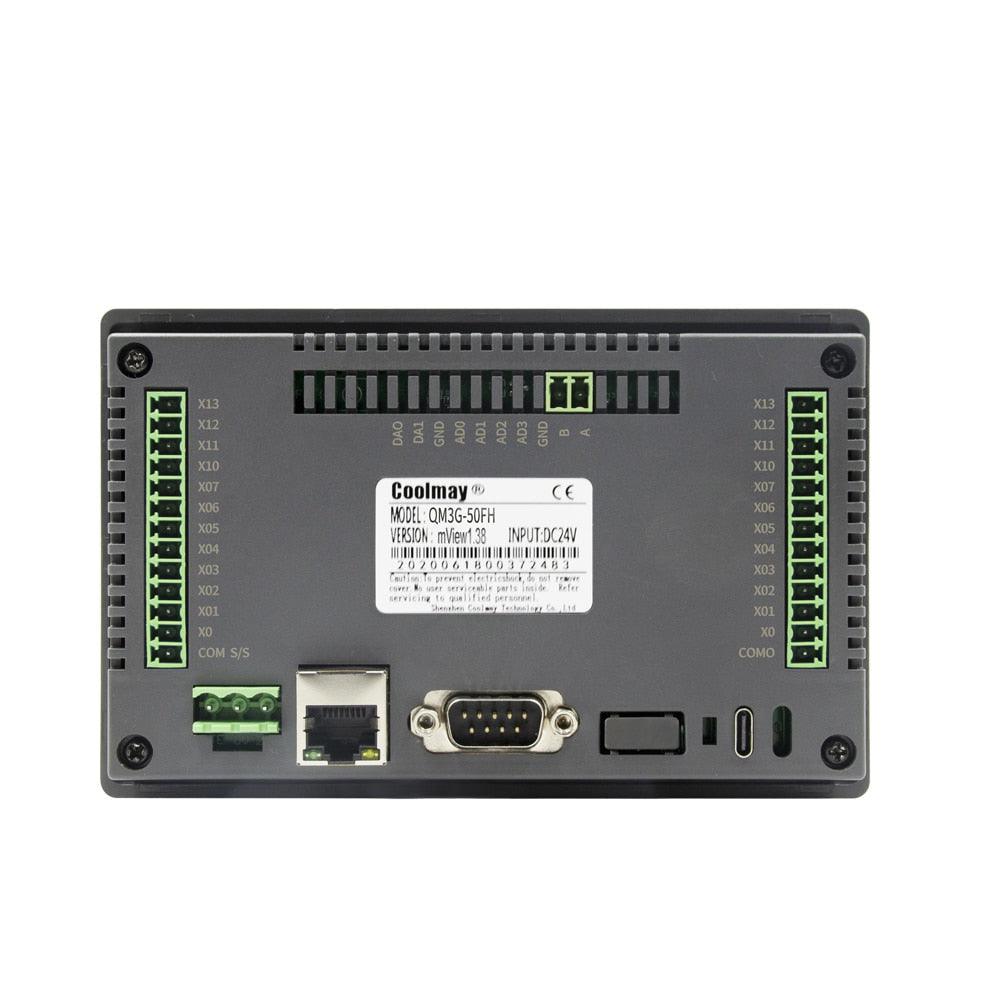

Wiring

Mouting Dimension


Cutout size: 143*86mm
