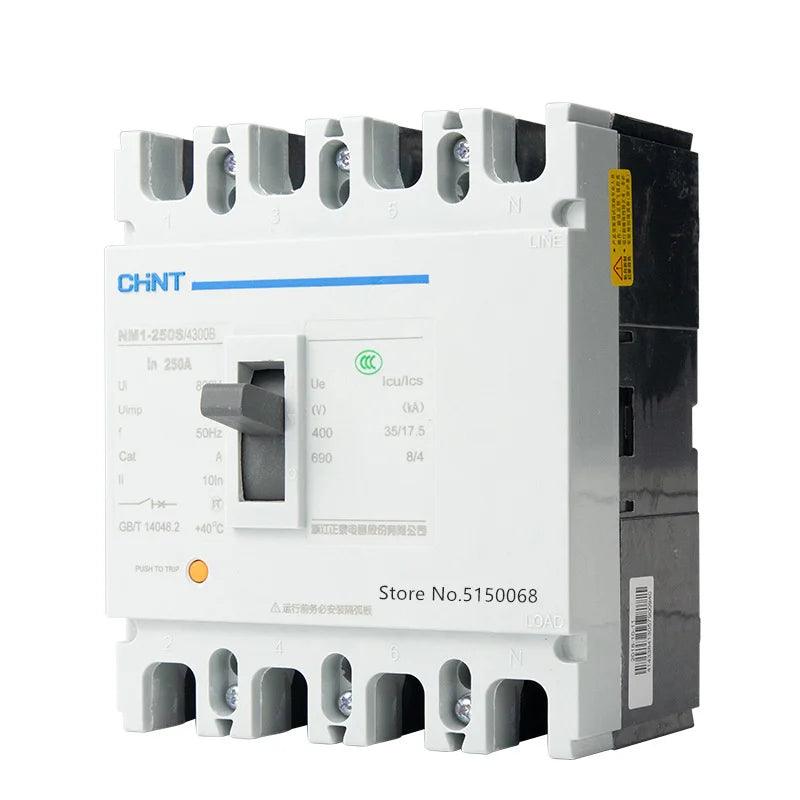

MCCB 3Phase CHINT MCCB Molded Case Circuit Breaker NM1 EZC100 NSX100 NSX100N EZC100F EZC100H 10A-630A

SPECIFICATIONS

MCCB 3Phase CHINT MCCB Molded Case Circuit Breaker NM1 EZC100 NSX100 NSX100N  EZC100F EZC100H 10A-630A 3P 4P 125A 160A 200A 250A 350A 630A

Brand Name: CHNT

Type: Moulded Case

Poles Number: 3

Rated Voltage: 400V

BCD Curve: BCD

Rated Frequency: 50Hz

Product Information

The rated insulation voltage of the circuit breaker is up to 800V (NM1-63 type is 500V), suitable for AC 50Hz, the rated working voltage is up to 690V (NM1-63 type is 400V), and the rated working current is from 10A to 1250A in the distribution network circuit, It is used to distribute electric energy and protect lines and power equipment from damages such as overload, short circuit, undervoltage and other faults. At the same time, it can also be used as infrequent starting and overload, short circuit and undervoltage protection of the motor. The MCCB 3Phase circuit breaker has the characteristics of small size, high breaking, short arcing, etc. It is an ideal product for users. The circuit breaker can be installed vertically (ie vertical installation) or horizontally (horizontal installation). The product has an isolation function. Compliant with standards: GB/T 14048.2, IEC 60947-2, and obtained CCC, KEMA, CB, NOM certification.

Product Display
