BL2418 DC Brushless 24V 9000RPM (Compatible 12V 4500RPM) High Speed BLDC Micro Motor Adjustable Speed Forward and Reverse

BL2418 DC Brushless Motor Series, Include 4 Family, click for details:
1) BL2418: High-speed (No Gearbox)
2) GA25-BL2418: Common Gearbox
3) GP24-BL2418: Planetary Gearbox
4) GW4632-BL2418: Worm Gearbox

More DC Brushless Motor Series (BL2418 series's brothers), click for details.

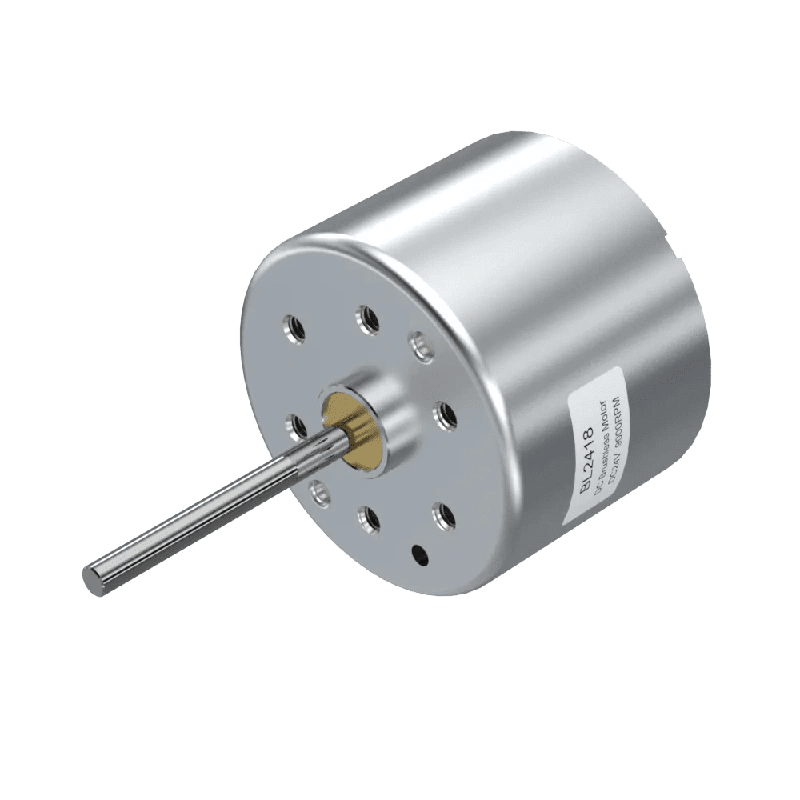

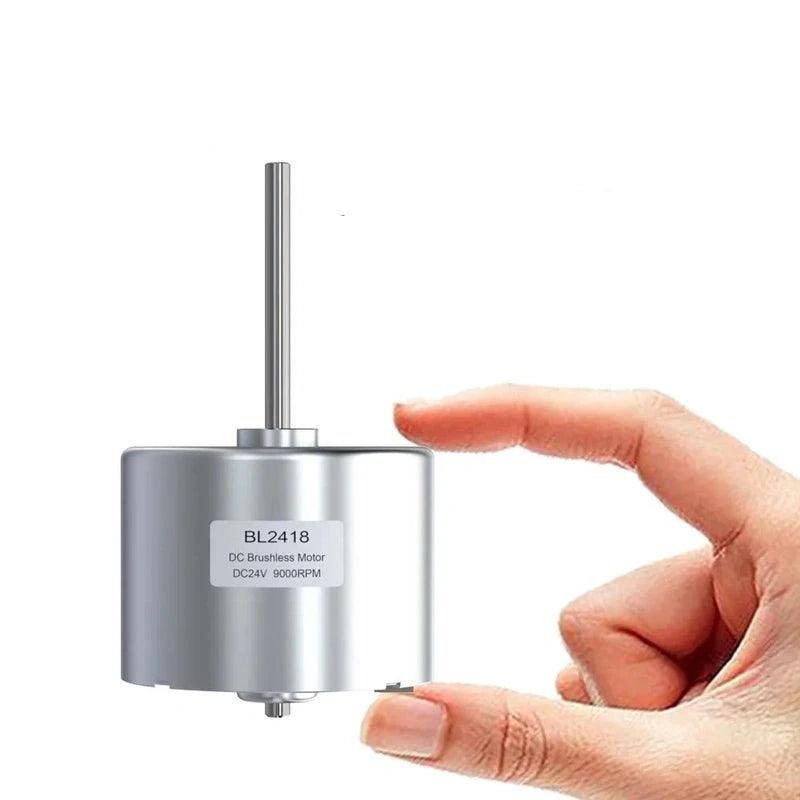

Model: BL2418-S0222R
Gear Box Name: -
Gear Box Type: -
Motor Body Name: BL2418
Motor Body Type: DC Brushless Motor (BLDC)
Shaft Number: Single

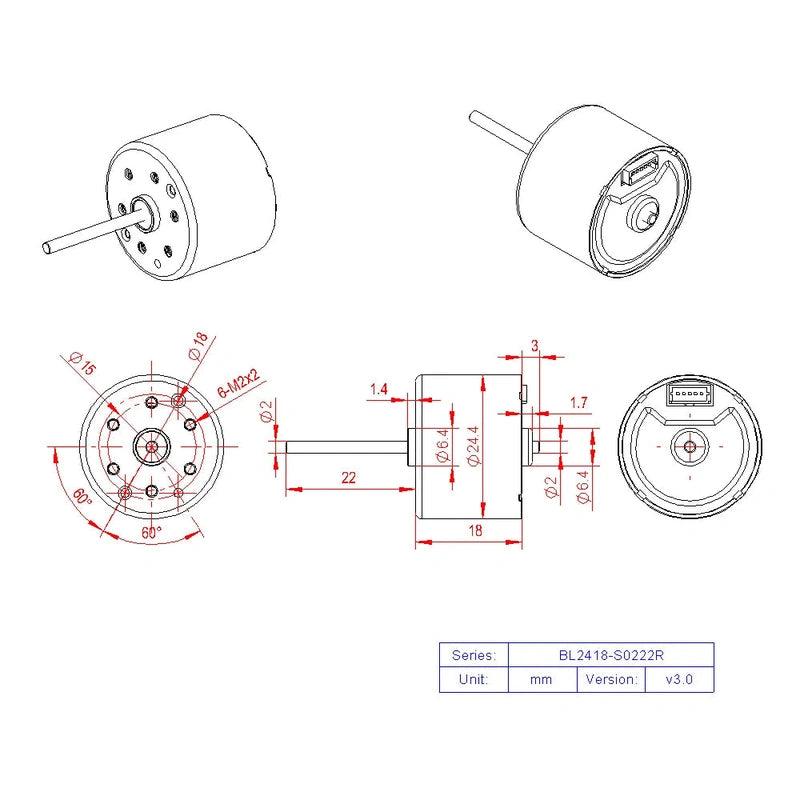

Shaft Size: 2mm(diameter) * 22mm(length)
Shaft Shape: Round
Rated Voltage: DC 24V (can be reduced to 12V, etc.)
Motor Weight: 26g (approx.)
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

The BL2418 is DC Brushless Motor with high reliability, no electric spark, low noise, adjustable speed, forward and reverse rotation, etc.

The BL2418 motor's rated voltage is DC 24V, it can be reduced to 12V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

The Speed (RPM) in the purchase option is DC24V.
When the voltage is reduced to 12V, the speed is about 1/2 of those of 24V.

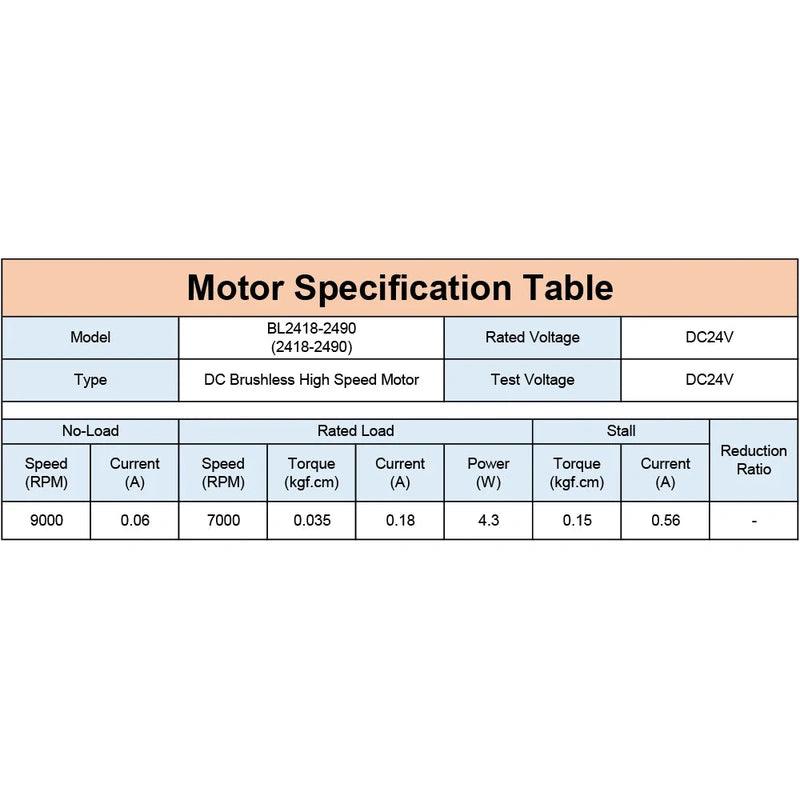

The No-load Speed at rated voltage DC 24V (Speeds in purchase options) is:
9000 RPM

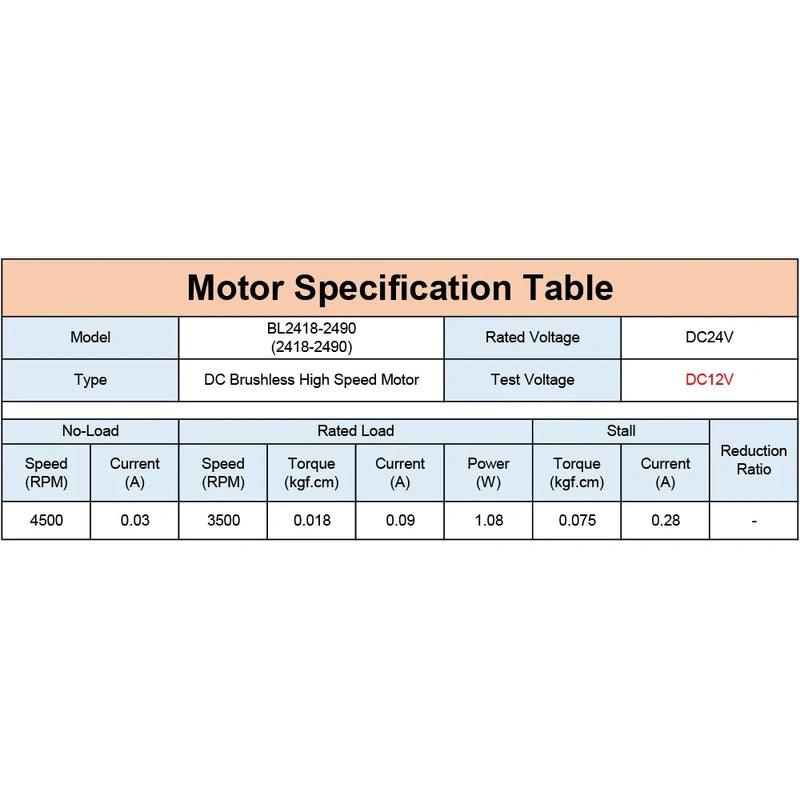

The No-load speed at DC 12V is (Speeds in purchase options divided by 2):
4500 RPM

For more voltages and speeds, please contact us.

Package included:
- 1 x Motor

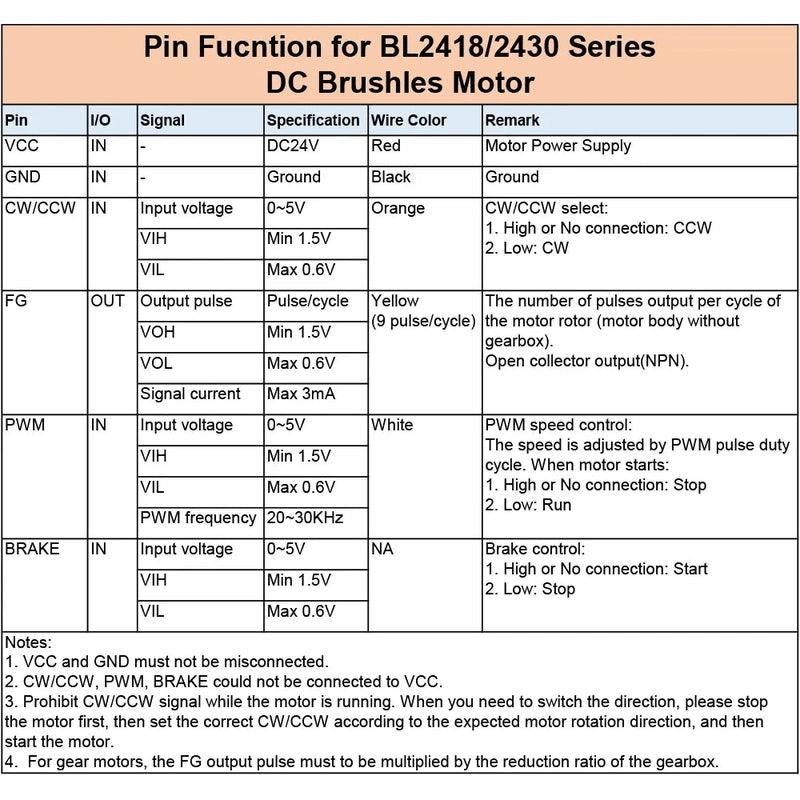

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.
