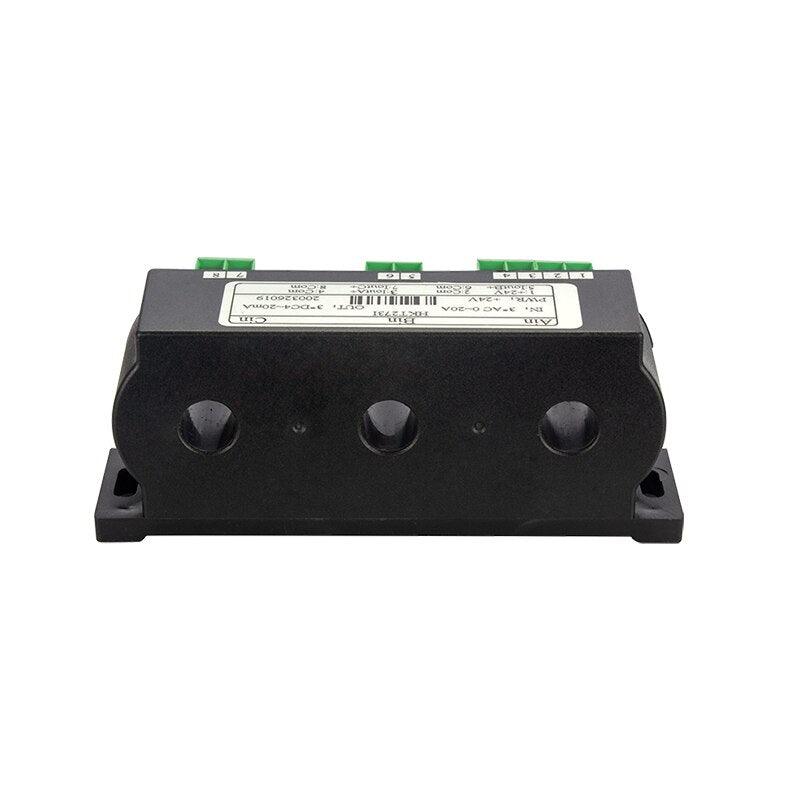

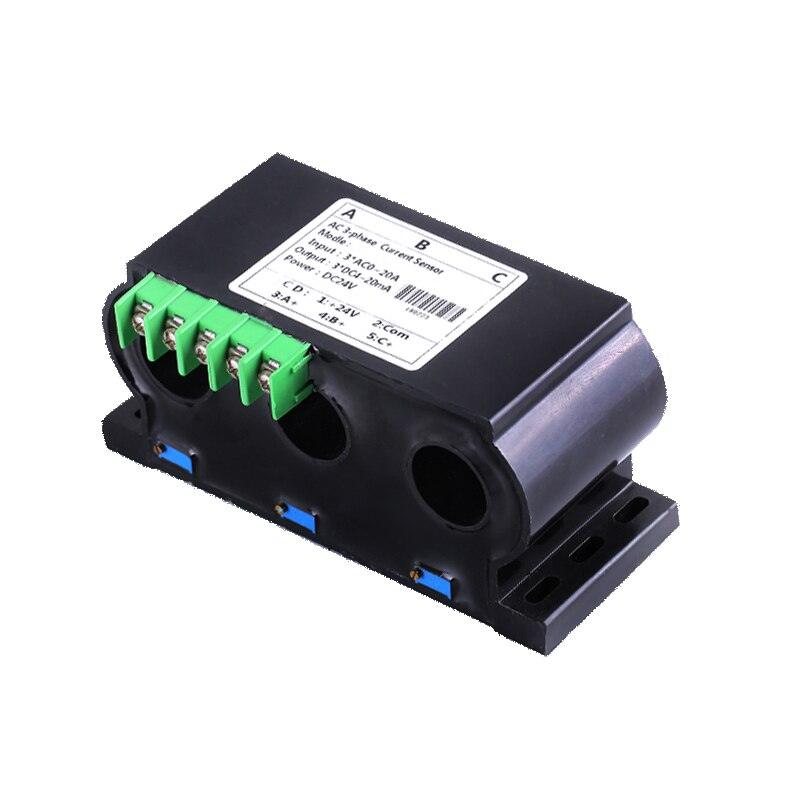

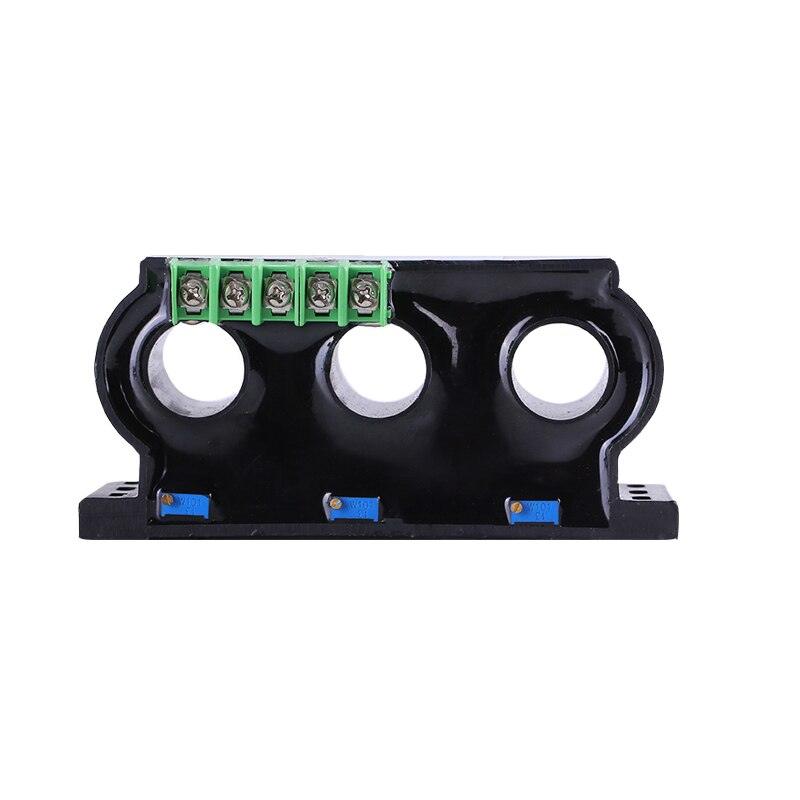

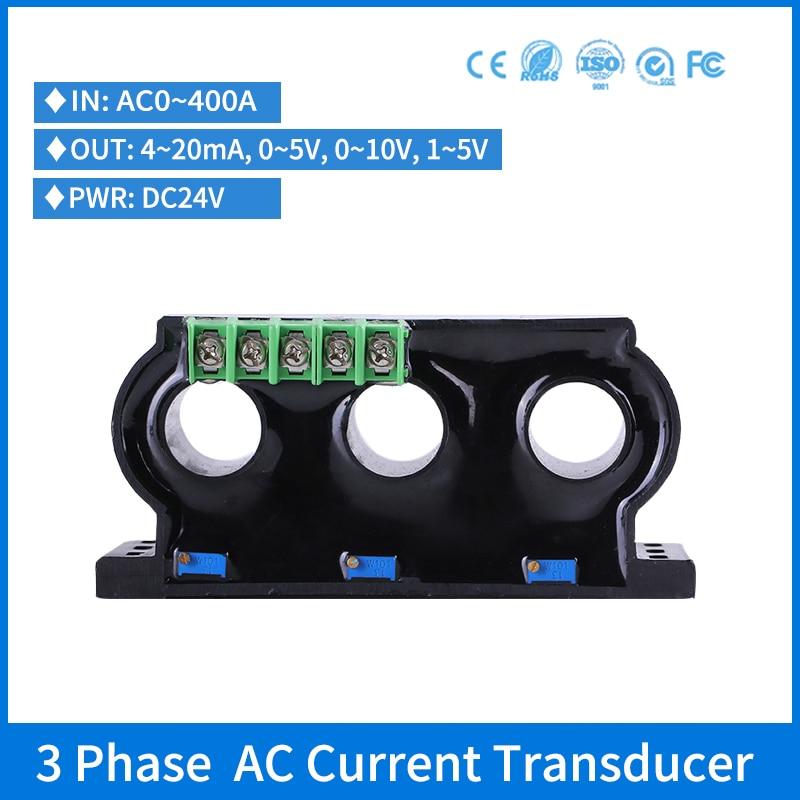

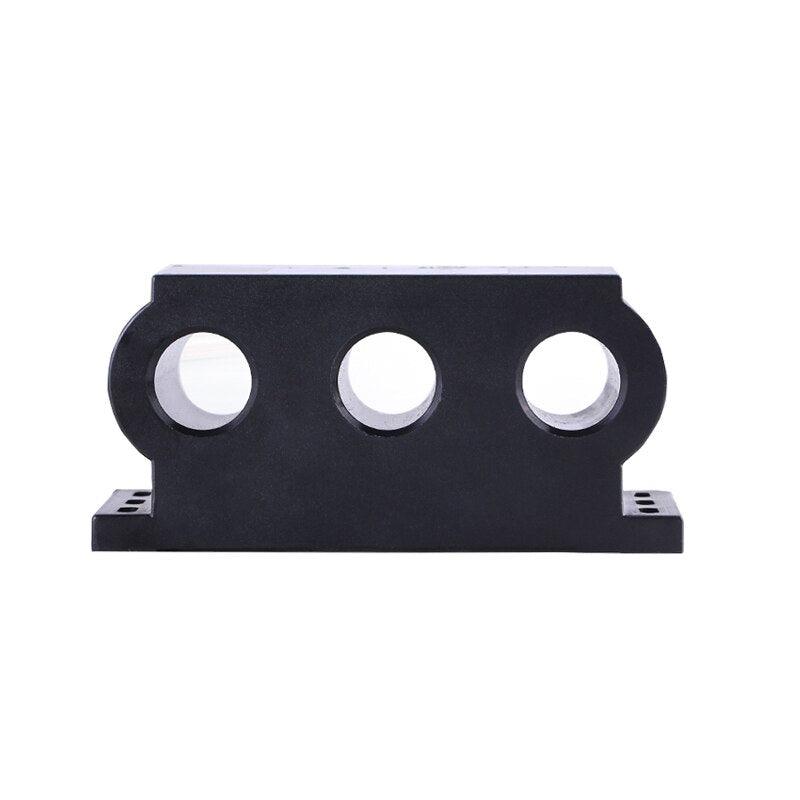

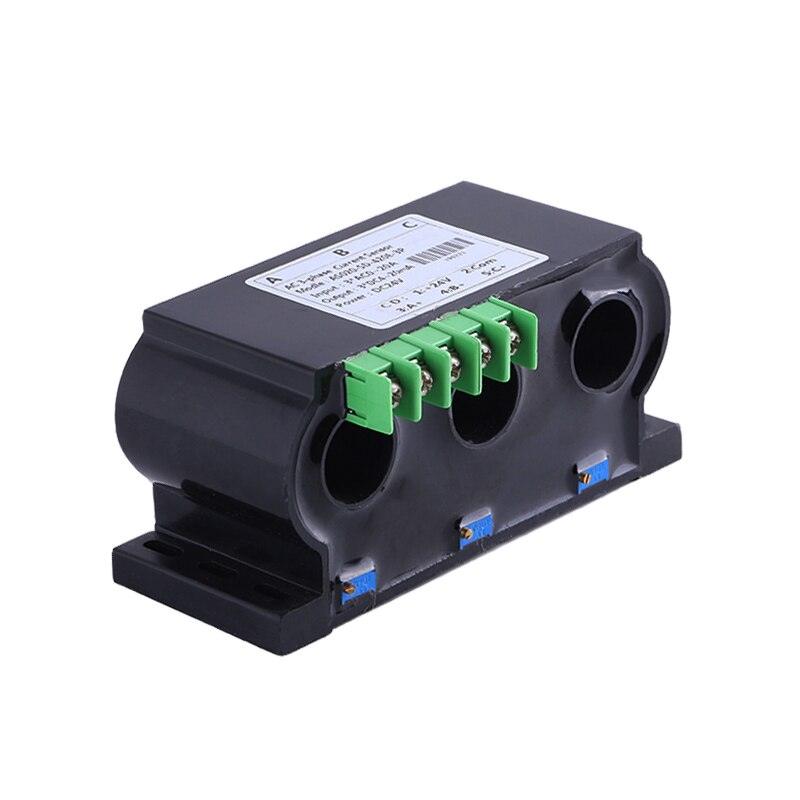

AC 0-100A 3 Phase Current Transducer 3 wire Analog Output 4-20ma 0-10v Three Phase AC Current Transducer

$93.02 USD
$103.34 USD $93.02 USD
Sale Sold out
Shipping calculated at checkout.
Color
Measuring Range
Size|Voltage

SPECIFICATIONS

AC 0-100A 3 Phase Current Transducer 3 wire Analog Output 4-20ma 0-10v Three Phase AC Current Transducer

Supply Voltage: DC12V-24V

Response time: <200ms

Product name: 3 phase current transducer

Output signal: 4-20mA,0-5V,0-10V,1-5V

Origin: Mainland China

Operating Temperature: -30℃~+85℃

Model Number: ELCT-3P2

Installation method: DIN 35mm rail+ plane screw fixation

Input current range: AC 0-400A

Frequency range: 40-60HZ

Display Type: Analog Only

Dimensions: 10mm,20mm

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.5%FS

AC 0-100A 3 Phase Current Transducer 3 wire Analog Output 4-20ma 0-10v Three Phase AC Current Transducer

NOTES:

The 3 phase current transducer can make any range within AC0~400A.

If you need other current range, please contact me.

We can make special customization for you.


Product Description

1>>. Working principle: Open loop direct measurement.

2>>. Usage: Used for measuring 3 phase AC current.

3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.

4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.

5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.

6>>. Full channel configuration,parameters customized.
