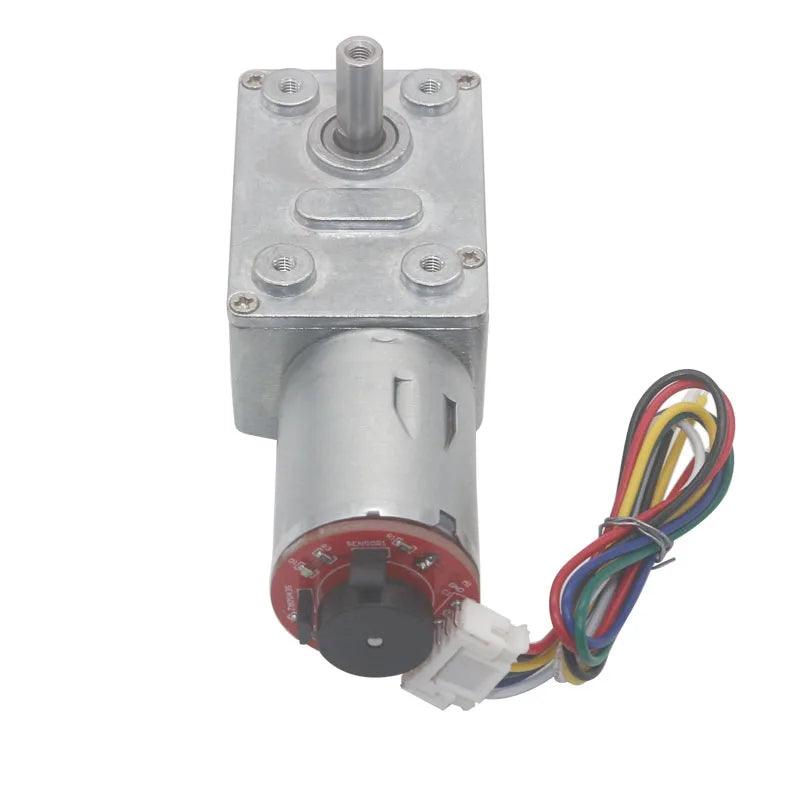

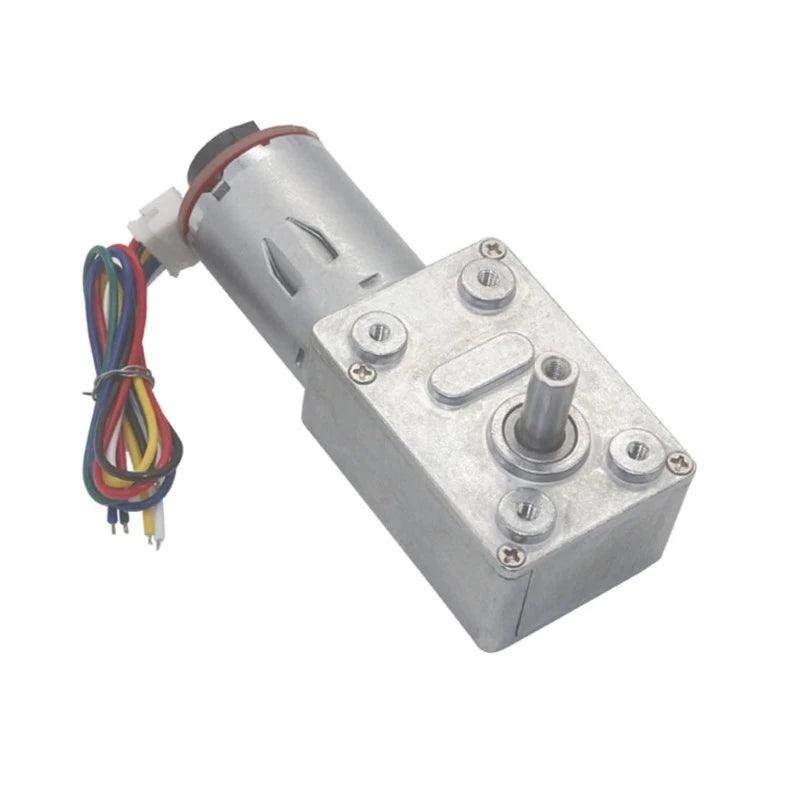

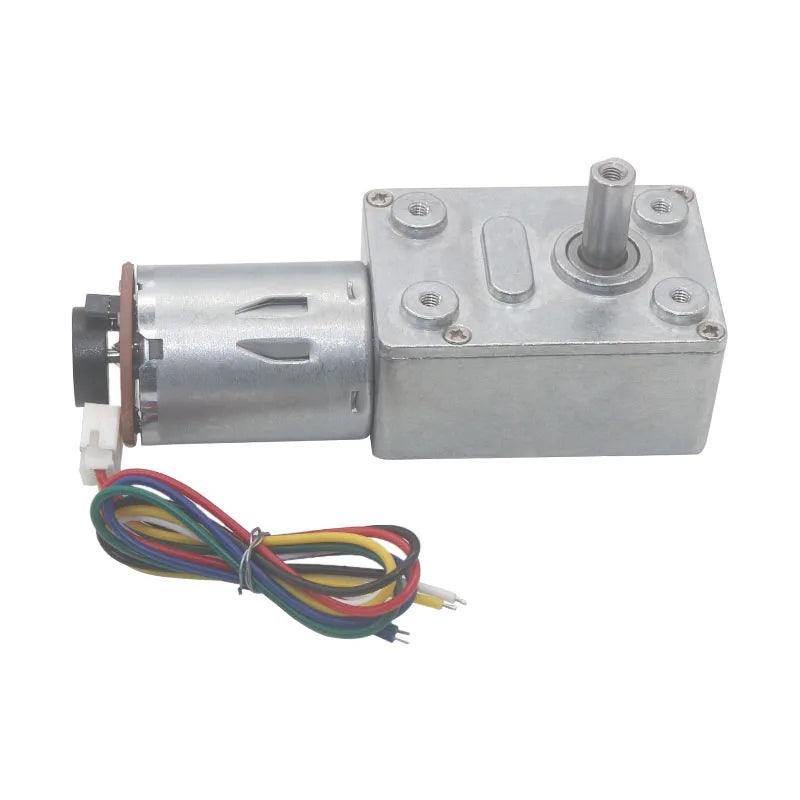

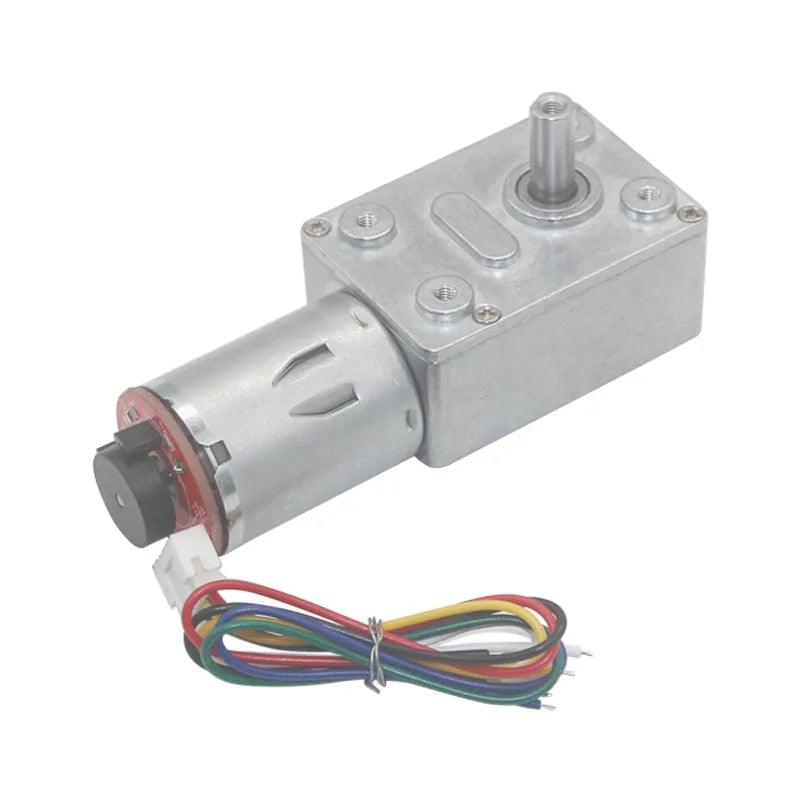

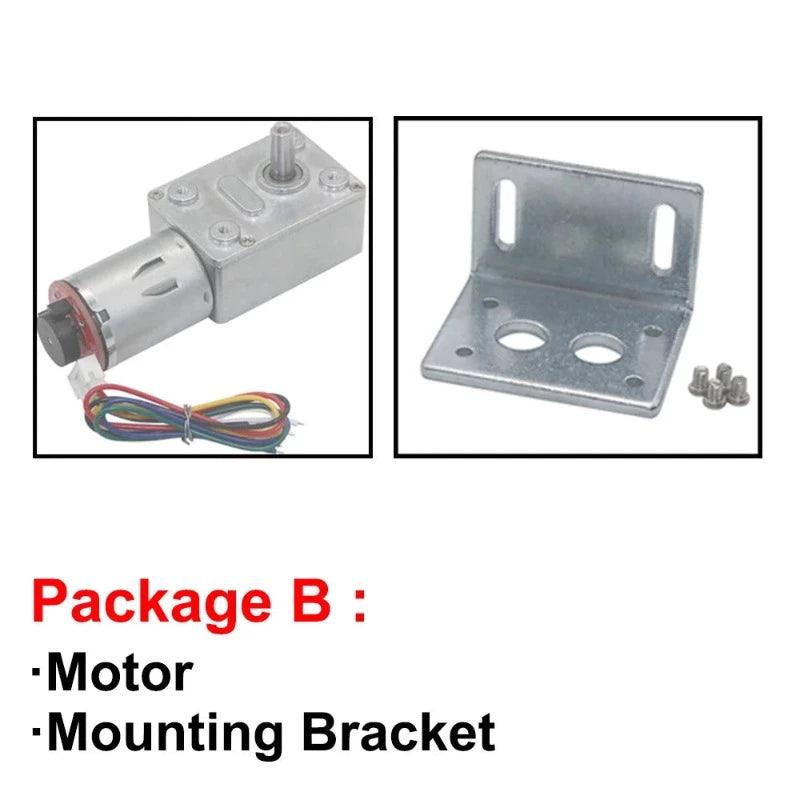

6V 12V 24V DC Gear Motor 6rpm 10rpm 18rpm 23rpm 30rpm 40rpm 90rpm 150rpm Self-lock Hall Encoder Worm Gearbox Reduction JGY370

Regular price $28.55 USD
Regular price $16.46 USD Sale price $28.55 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

6V 12V 24V DC Gear Motor 6rpm 10rpm 18rpm 23rpm 30rpm 40rpm 90rpm 150rpm Self-lock Hall Encoder Worm Gearbox Reduction JGY370

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: JGY370 Geared Motor

Note: Different parameters' motors have their different looks. The lower speed and higher voltage are, the larger the torque is. Please read the parameters table before buying. Thanks!!!

Voltage: DC6V, DC12V, DC24V

No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 90rpm, 150rpm

Error: ±10%

Output Shaft Diameter: 6mm D-type

Output Shaft Length: 14mm

Gearbox Size:46*32*25mm

Gearbox Size Detal, please see the table

Wirings:

Notice:

1. The yellow and green wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.

2. Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.

3. Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)

Red Wire - positive power supply of motor(+)

White Wire - negative power supply of motor(-)

Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;voltage is3.3-5V)

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V)

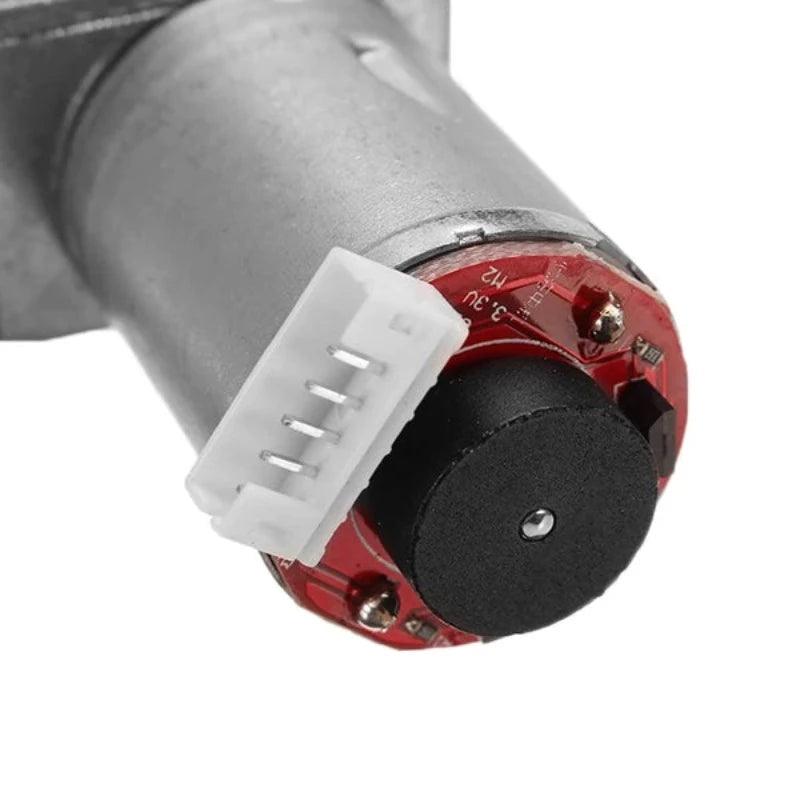

Yellow Wire - signal feedback (11 signals per motor turns a circle)

Green Wire - signal feedback (11 signals per motor turns a circle)

Applications:
