60W DC Gear Motor 12V 24V High Torque 100KG Reducer Speed 10rpm -600rpm Permanent Magnet Gearbox Motor Long Life Low Noise 12 V

Regular price $192.31 USD
Regular price $139.97 USD Sale price $192.31 USD
Sale Sold out
Shipping calculated at checkout.
Speed(RPM)

SPECIFICATIONS

60W DC Gear Motor 12V 24V High Torque 100KG Reducer Speed 10rpm -600rpm Permanent Magnet Gearbox Motor Long Life Low Noise 12 V

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Continuous Current(A): 3.5A

Output Power: 60W

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 60W

Torque: 100KG.cm

Application

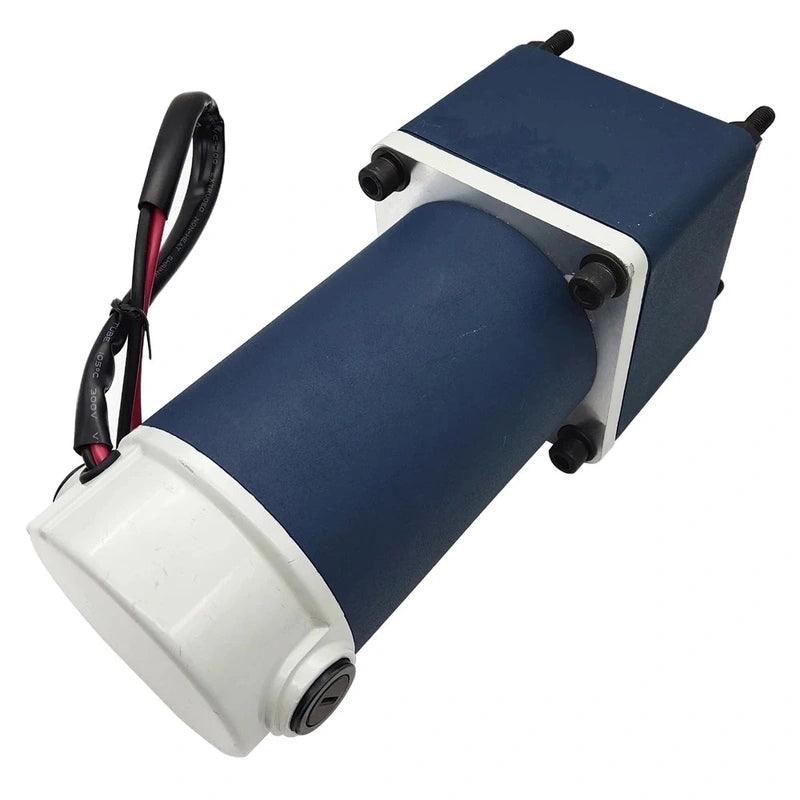

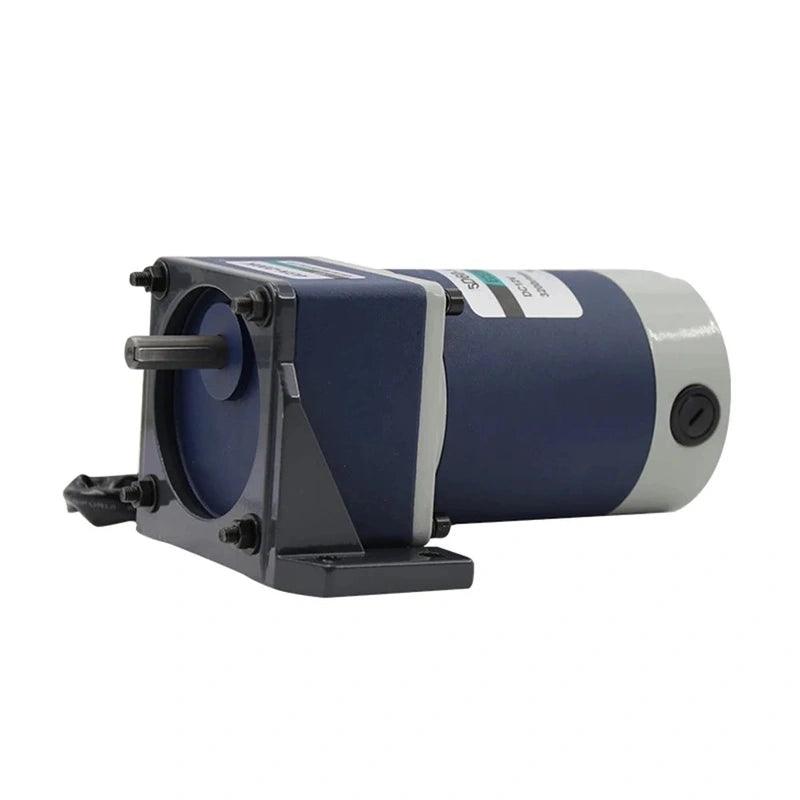

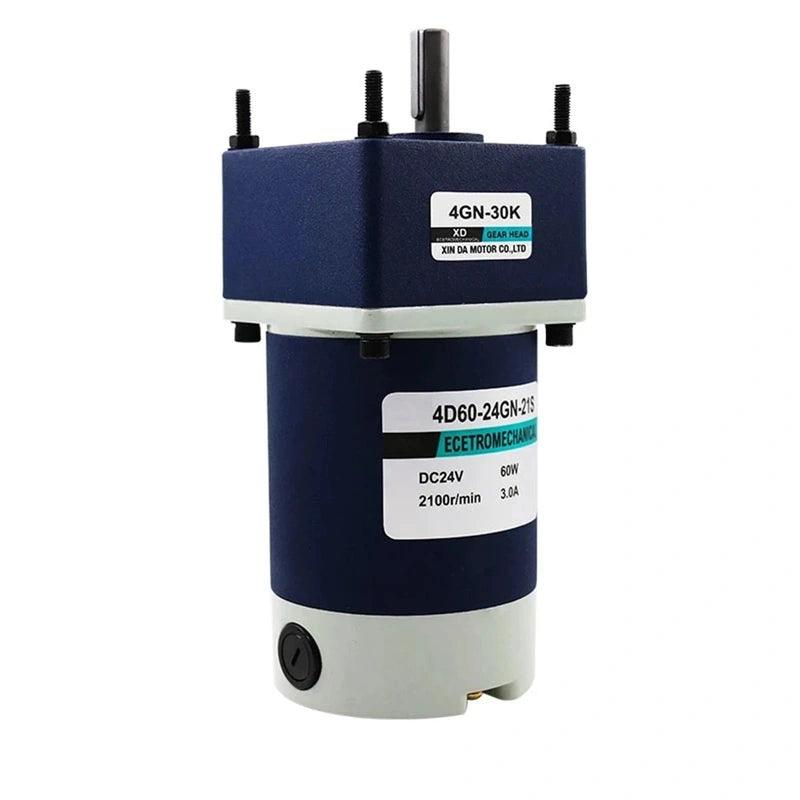

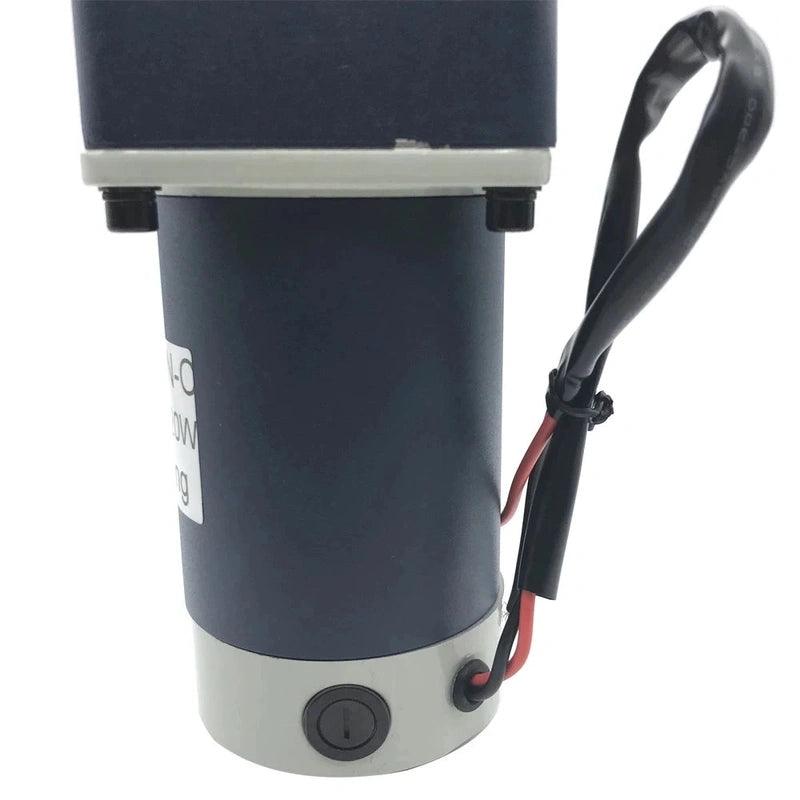

The following is the picture of the motor

Friendly reminder

Recently, this motor is in the upgrade stage. There are some changes in the shape and color of the motor after the upgrade. However, the size and performance of the motor are unchanged.

Our warehouse will randomly send the motor, you may receive the motor before the upgrade, you may also receive the upgraded motor, please know before buying, thank you.

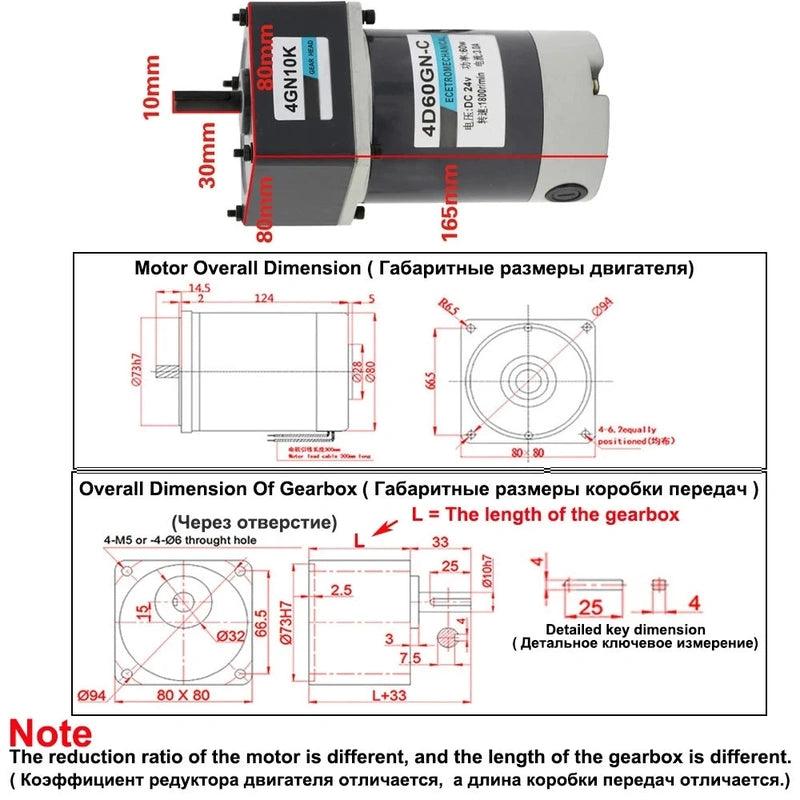

The size is for reference only,the measurement will be slightly different,please pay attention before buying

The following is a description of the quality materials and structures of this motor.

1. Using imported lubricating oil, it can reduce the friction of the motor, control the speed of the motor temperature rise, reduce the running noise and extend the life of the motor.

2. The wire in the rotor is made of pure copper. It is more conductive,resistant to temperature and prolongs the life of the motor.

3. Use all metal gears inside the gearbox

The parameter table of the motor

Introduction of the motor

1. Name of the motor: XD4D60-12GN-18S DC Gear Motor 12V 24V In DC Motor

2. Rated voltage have DC 12V and DC 24V

3. DC 12V ; You can choose the no load speed have : 10rpm/20rpm/30rpm/50rpm/100rpm/200rpm/300rpm/400rpm/600rpm

Rated torque between 3.2 To 100 KGF.CM; Select a no load speed in DC 12V, there will be corresponding rated torque , please refer to the parameter table below.

4. DC 24V ; You can choose the no load speed have :
10rpm/20rpm/30rpm/50rpm/100rpm/200rpm/300rpm/400rpm/600rpm

Rated torque between 3.2 To 100 KG.CM; Select a no load speed in DC 24V, there will be corresponding rated torque , please refer to the parameter table below.

5. Power : 60W

6. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

7. Gear material: Metal gears make the motor last longer

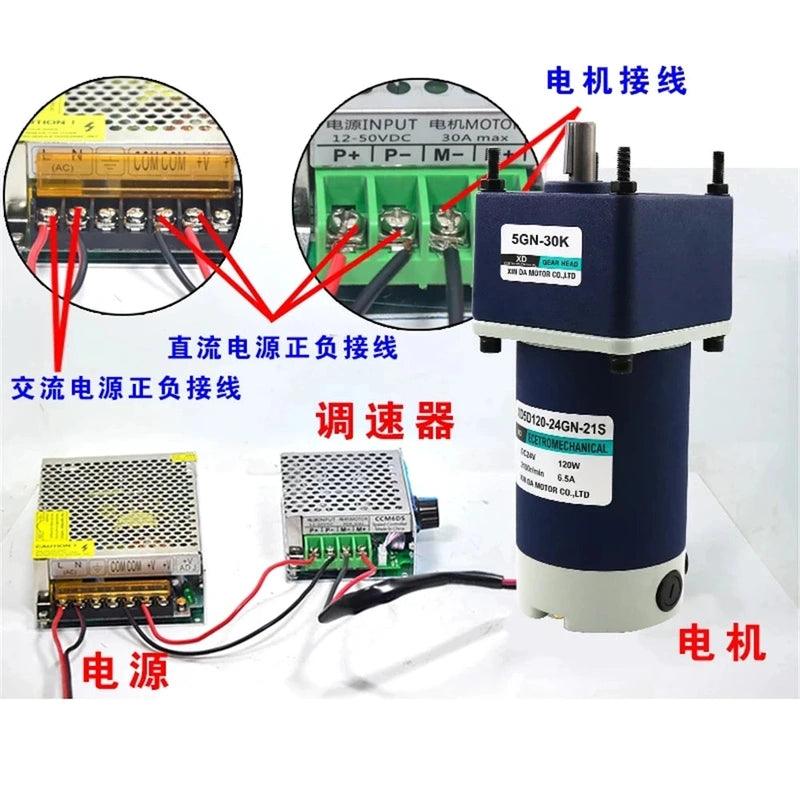

8. The speed of the motor can be adjusted using the speed controller.

9. Low Noise 35dB

10. Continuous operation for 24 hours

11. Outstanding features: low energy consumption; high efficiency; stable operation

12. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Office automation; home automation; production automation; medical equipment; security equipment; consumer electronics; automotive electronics; automatic money counters; vending machines; video recorders etc.
