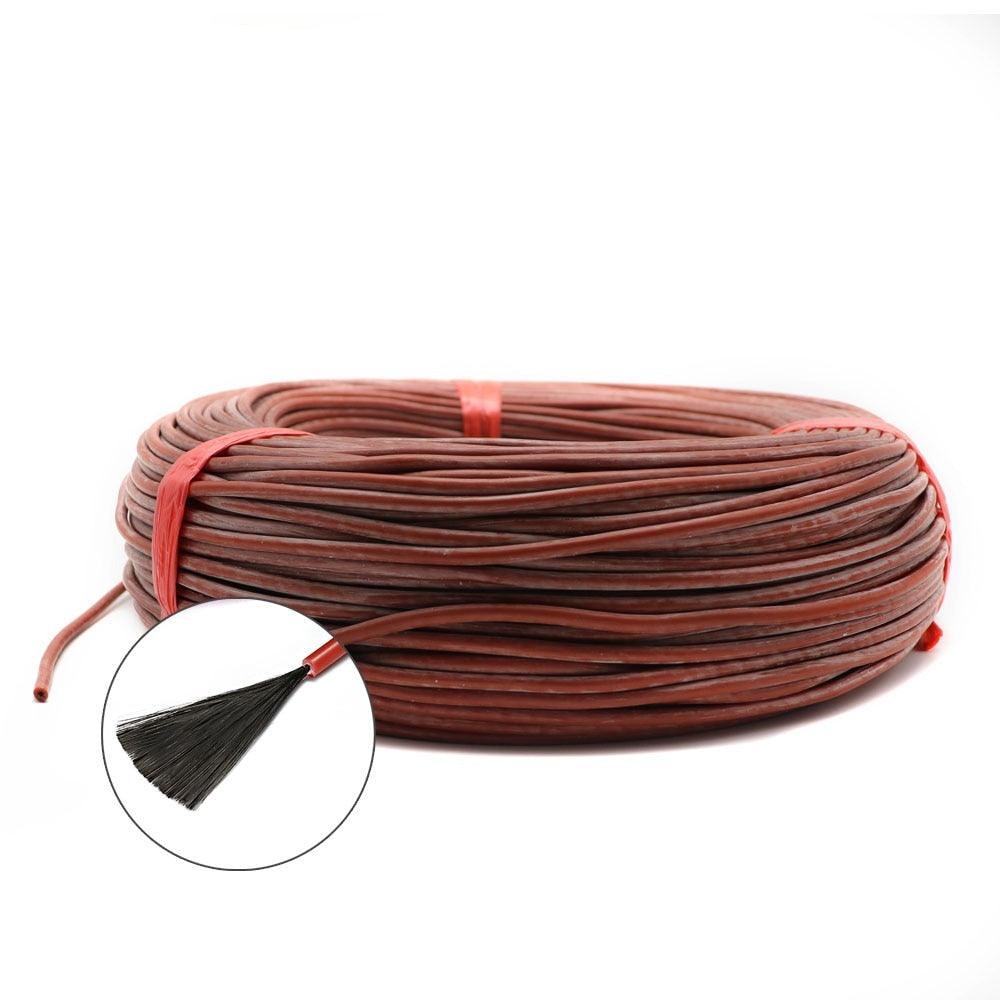

5-100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 2.0mm Fiber Wire Floor Hotline Thickening

$7.47 USD
$8.72 USD $7.47 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

5-100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 2.0mm Fiber Wire Floor Hotline Thickening

Voltage: 7~300 V

Voltage: 220V

Type: Floor Heating Parts

Resistance: 33 Ohm/m

Power: 150w/m2

Outer jacket: Silicone rubber

Model Number: AG-12K

Material: Anti-flammable PC

Floor Heating Part Type: Floor Heating Cables

Core size: 12K

Technical Datas:

Conductor resistance: 33±10% Ω/m
Infrared wavelength: 8UM-18UM
Colors: Red
Diameter: 3±0.1 MM ( Thicker and Safer; Толще и безопаснее)
The product can withstand max power: 25W/M
Leakage current: 0.05mA/m
Heating conductor: 12K
Heating temperature: based on the using length
Max enduring temperature: 200C degrees
Insulating material: Silicone rubber
Product Name:  Carbon fiber heating wire
What is the power of the cable? And what is heating temperature?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees.
Please notice that this is for your reference, not exactly right because of different test conditions.

How to calculate power?

220V*220V÷(15meters*33Ω)=100W
100w/15m=6.66w/m
- For example, using15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
150w/10m=15w/m
- For example, using 10m 12K carbon fiber cable on 220V, the power is:
12K=33ohm/meter
Voltage*Voltage÷resistance=electric power

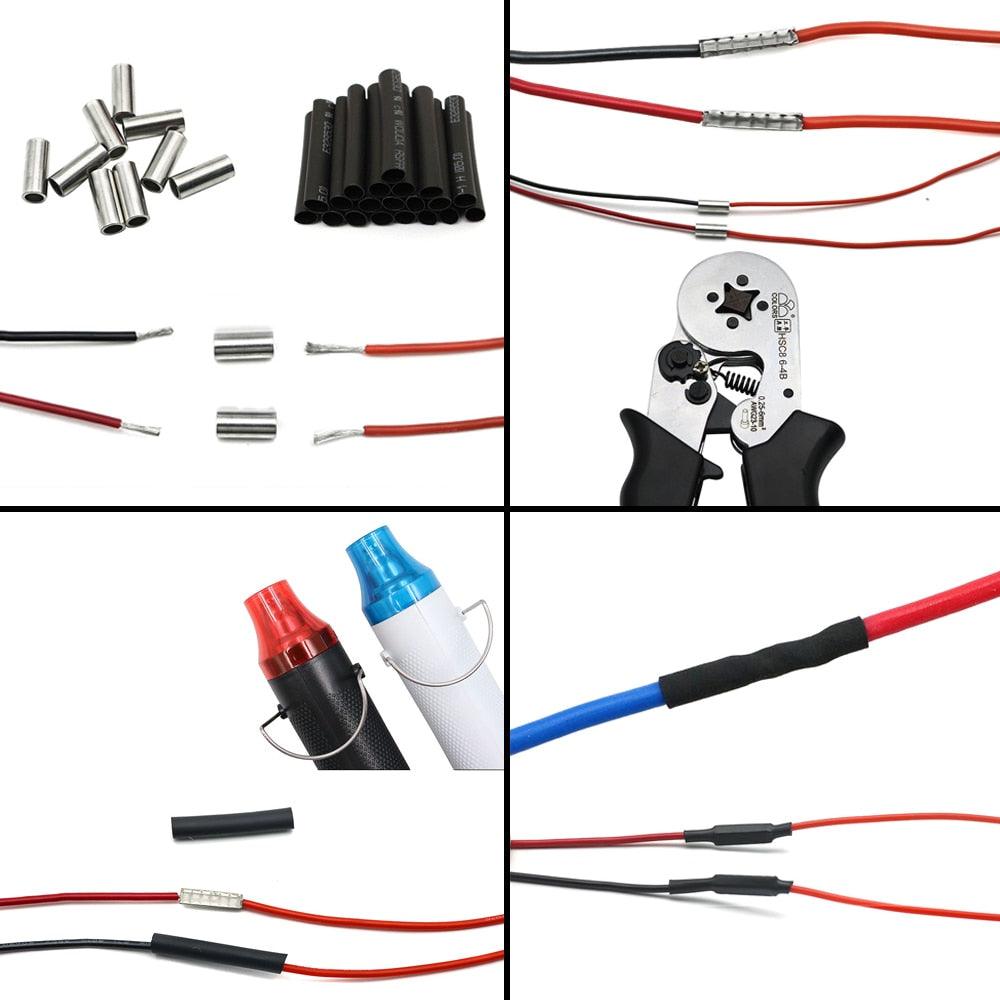

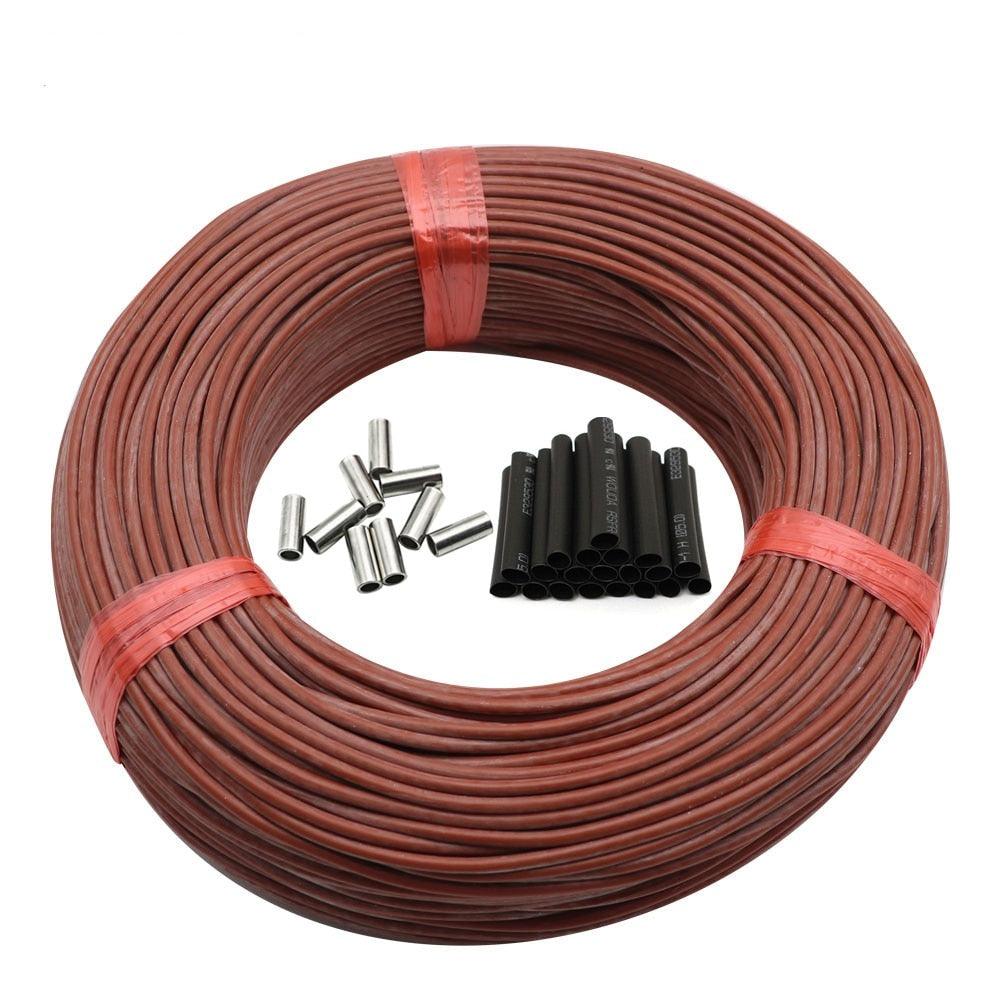

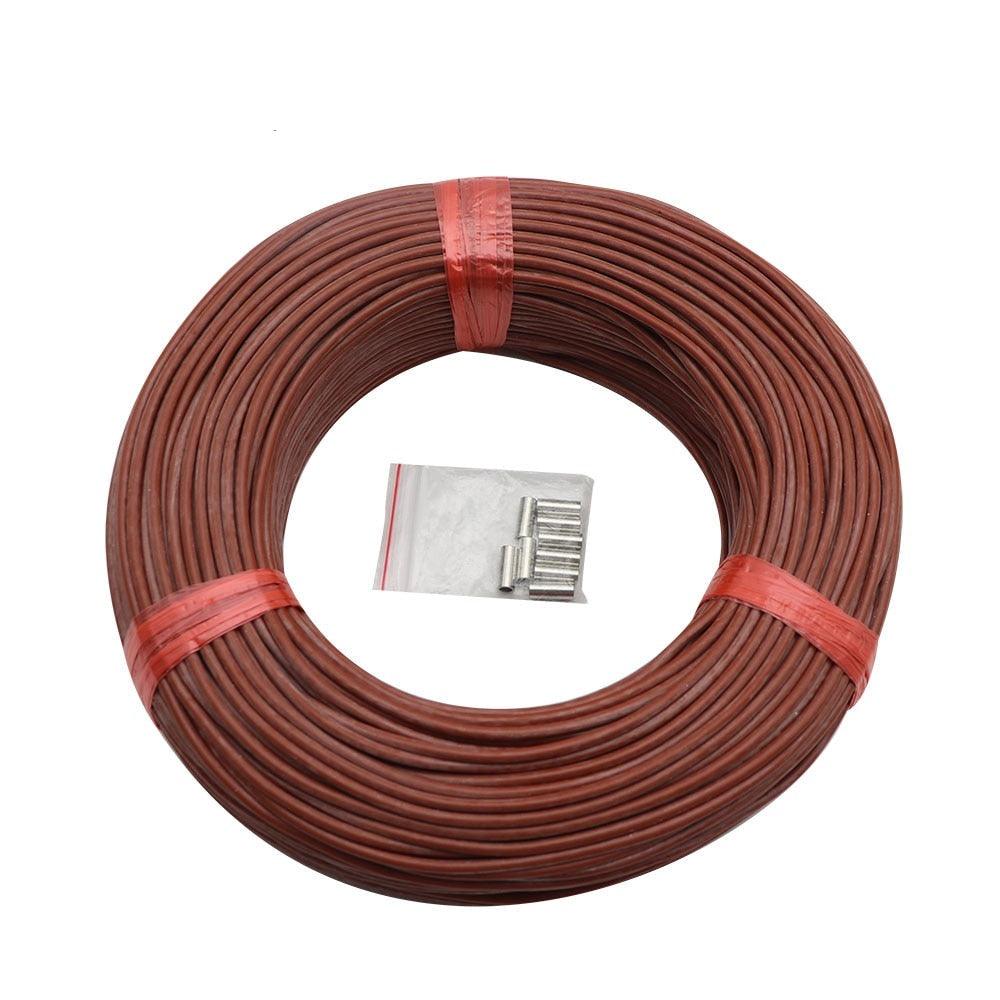

Package Includes:

Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves
Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
Buy 40m = 40m cable + 8 pcs copper tube + 8 pcs sleeves
Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
Buy 60m = 60m cable + 12 pcs copper tube + 12 pcs sleeves
Buy 70m = 70m cable + 14 pcs copper tube + 14 pcs sleeves
Buy 80m = 80m cable + 16 pcs copper tube + 16 pcs sleeves
Buy 90m = 90m cable + 18 pcs copper tube + 18 pcs sleeves
Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
