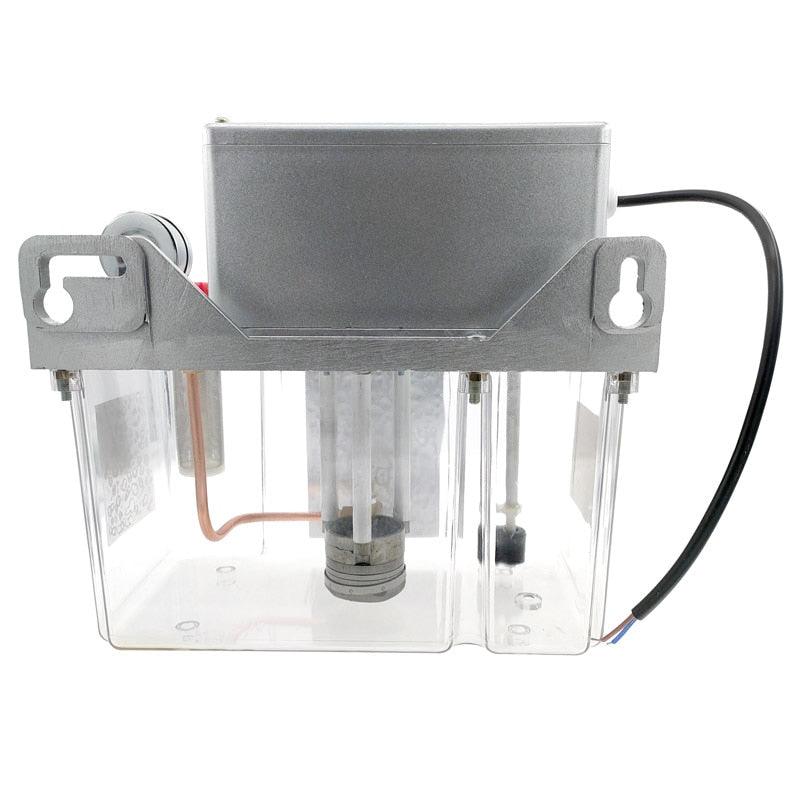

4L electric lubricating oil pump, CNC machine tool machining center MH2262-400TX

SPECIFICATIONS

Usage: Oil

Theory: Electromagnetic Pump

Structure: Gear Pump

Standard or Nonstandard: Standard

Pressure: Low Pressure

Power: Electric

Model Number: 4L

Fuel: lubricating oil

Application: Automatic CNC control solenoid pump

Product attributes:

Voltage: 220V 50/60Hz

Name: Automatic gear pump

Power: 90W

Model: MH2262-400TX

Current: 0.35A

Volume ratio: ≥75%

Discharge volume: 200ml/min

Oil outlet: M10×1 connected with 6mm pipe

Runtime: 1-999 seconds

Interval time: 1-999 minutes

MH2262-400TX series gear pump, oil pump is a kind of automatic control, working hours, 1-999 seconds and intermittent time 1-999 minutes can be regulated according to the requirements of the machinery and equipment, high efficiency, can match unloading oil displacement points implement use, suitable for machine tools, textile machinery, elevator, woodworking machinery gear, guide rail lubrication, the place such as chain lubrication, use with centralized lubrication fittings, Thus, no manual operation is required.

Instructions:

1. Simple installation, direct access to 220V power supply.

2. The oil pump is equipped with oil level alarm, when the oil level is insufficient, the alarm can be sent in advance, and the lubricating oil can be added in time.

3. Adjustment range of pump setting time, working time 1-999 seconds, interval time 1-999 minutes.
