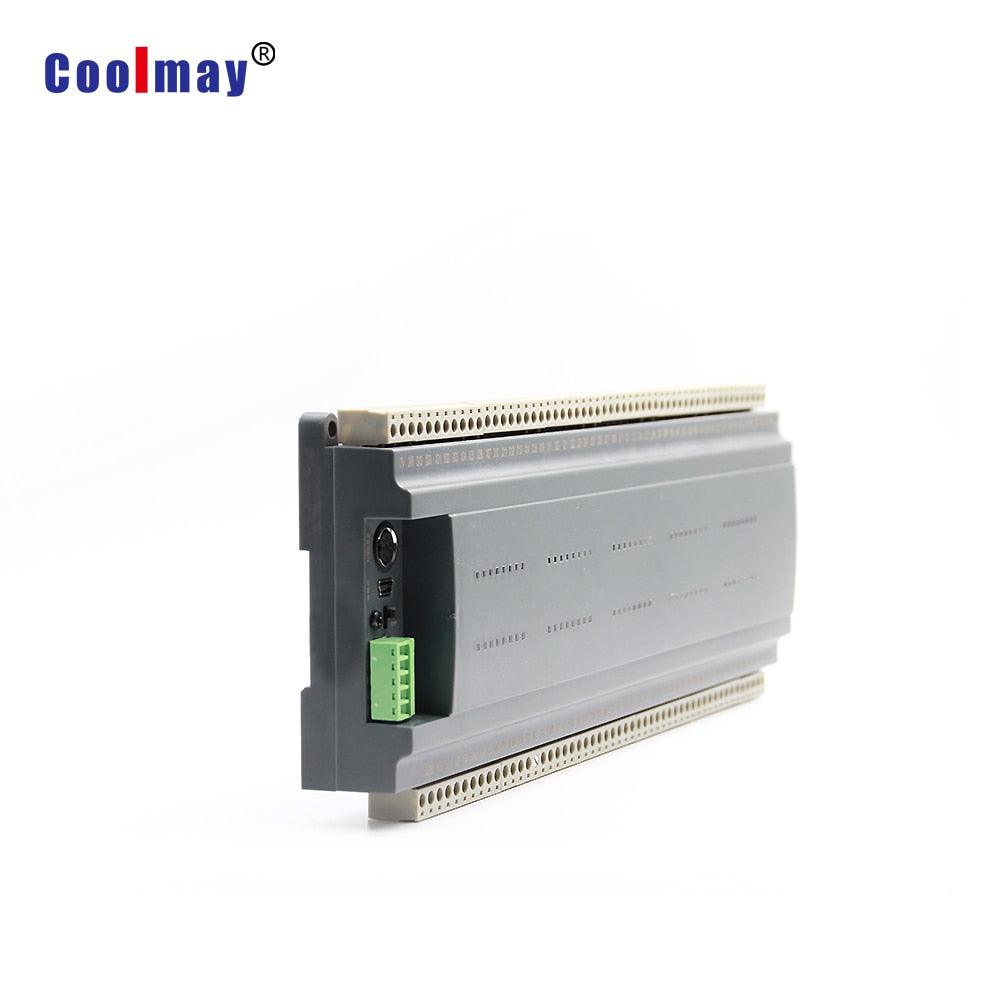

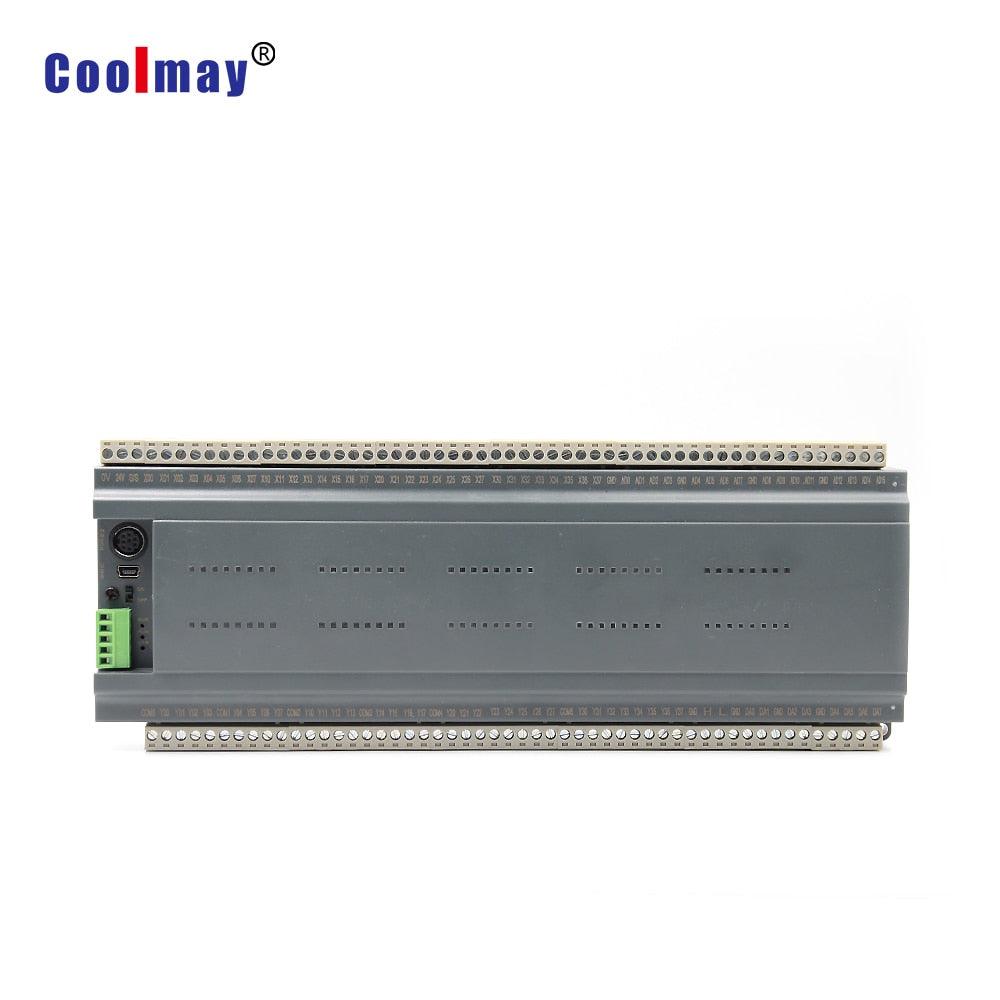

CX3G-80MT 40DI 40DO plc controller with 232 and 485 support Modbus RTU
Couldn't load pickup availability
SPECIFICATIONS
40DI 40DO plc controller with 232 and 485 support Modbus RTU
Voltage: DC24V
Usage: Industry/Agriculture/smart home/medical etc
Type: Coolmay plc controller
Motor Type: Stepper Motor
Model Number: CX3G-80MT-2AD-NTC10K-485/485
Material: Plastic
I/0 level: NPN
Function: remote control
Cutout Size: 277*99mm
Brand Name: Coolmay
Application: Electronic Equipment
Model:CX3G-80MT-2AD-NTC10K-485/485
Package:
* 1 set of plc device + cables
* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.
Note:
1) PLC details:
with 32K programming steps,
40DI/40DO transistor output type,
2 analog input: 2 channels of NTC10K as default
1 RS232 + 2 RS485 com port . (other configuration can be customized as below specification table)
2) 1 set of cables is free of charge. Please order in our store for additional cables.
3) CX3G-48MR-485/485 can specially make ethernet port. contact sales for details if need it.
Specifications of CX3G series
|
Model |
CX3G-16M |
CX3G-24M |
CX3G-32M |
CX3G-48M |
CX3G-34M |
CX3G-64M |
CX3G-80M |
|
Dimension |
85*90*36mm |
130*90*36mm |
200*90*36mm |
285*90*36mm |
|||
|
Cutout size |
77*99mm |
122*99mm |
192*99mm |
277*99mm |
|||
|
Installation |
Fixed hole installation and DIN-Rail (35mm ) |
||||||
|
Features |
Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
||||||
|
I/O level |
Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact |
||||||
|
Digital I/O |
8DI/8DO |
12DI/12DO |
16DI/16DO |
24DI/24DO |
18DI/16DO |
32DI/32DO |
40DI/40DO |
|
DO type |
Transistor(MT) or mixed(2T6R) |
Relay(MR) or transistor(MT) or mixed(MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
|||||
|
High speed counting |
6 channel single-phase 60KHz or AB(Z) phase 2 channel 60KHz, 1 channel 10KHz |
||||||
|
High speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
||||||
|
Analog I/O (optional) |
Null |
6AI/4AO |
2AI |
8AI/4AO |
12AI/8AO |
16AI/8AO |
4AI/4AO |
|
AI type (optional) |
Type E/K/S/T/J thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA -5V~5V/ -10V~10V(except for CX3G-16M) |
||||||
|
AO type (optional) |
0~10V/ 0-~5V/ 0~20mA/ 4~20mA -5~5V/ -10~10V (2DA for 1 minus temperature) |
||||||
|
Default COM port |
1 Mini type B USB port, 1 Rs232(Interface terminal is mouse female port with 8 holes), 2 RS485 ports |
||||||
|
Optional |
Default 2 RS485 ports can be customized as 1 RS485, 1 RS232, or 1 RS485, 1 CAN (2.0A/B), or 1 RS232, 1 CAN (2.0A/B) CX3G-48M can add Ethernet port. |
Default 2 RS485 ports can be customized as 1 RS485, 1 RS232, CAN (2.0A/B) port is optional |
|||||
|
Software |
Compatible with WORKS 2 |
||||||
