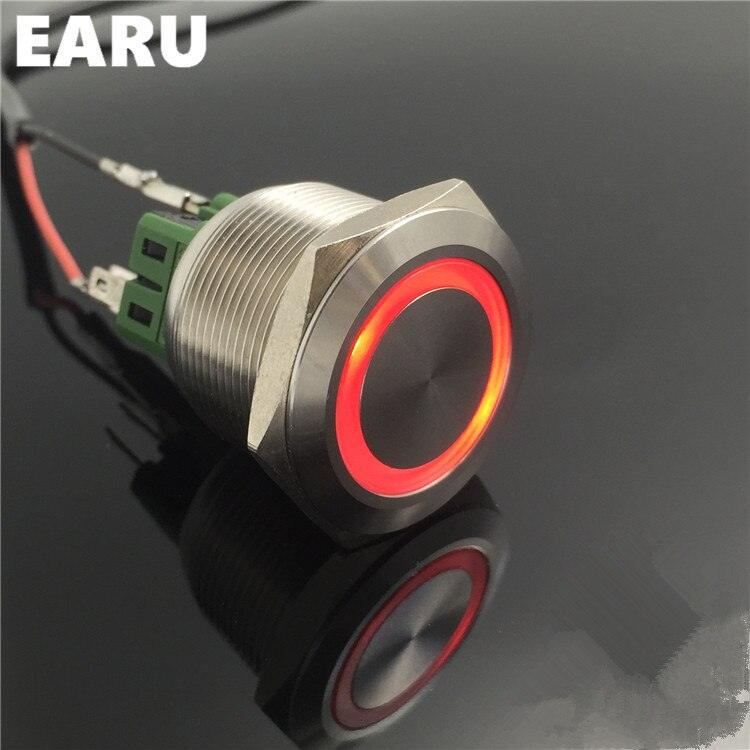

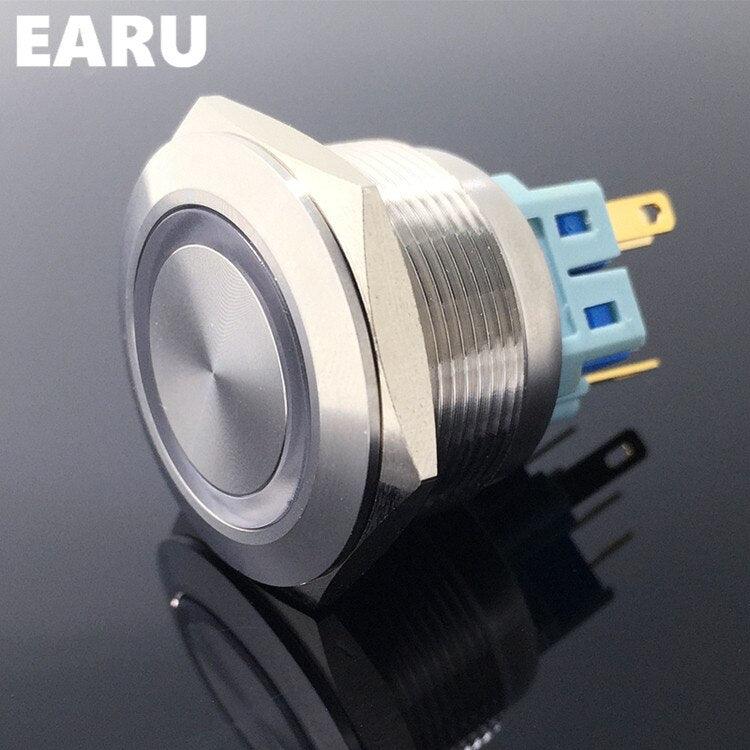

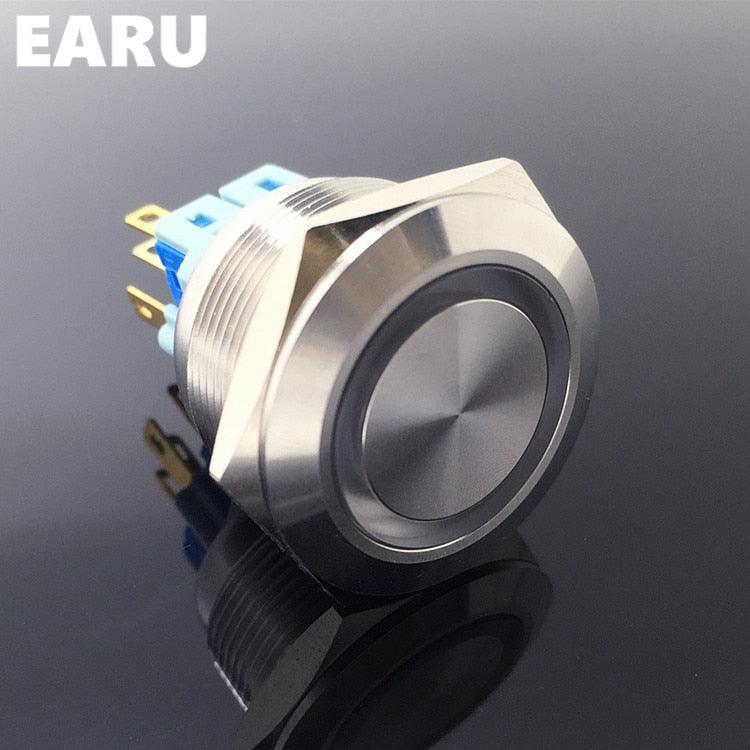

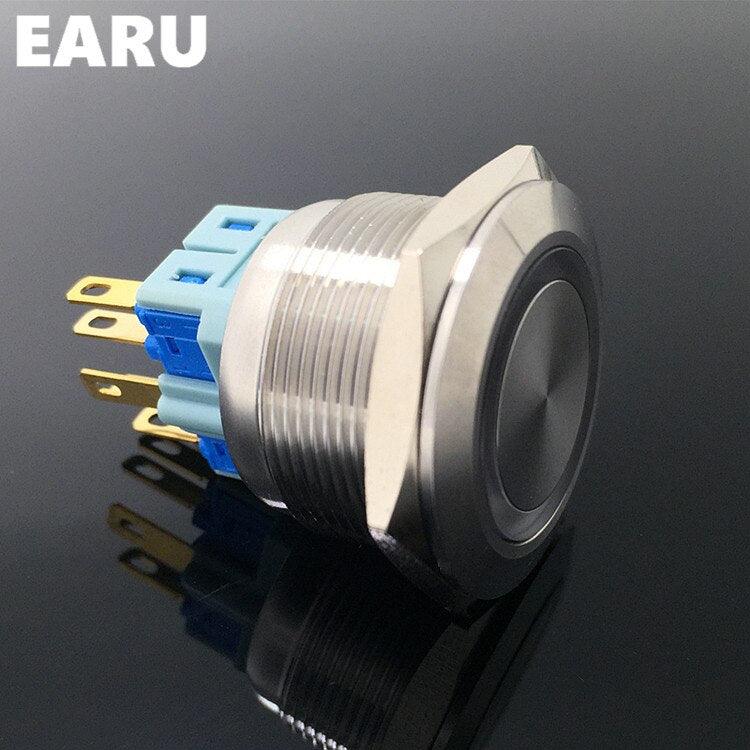

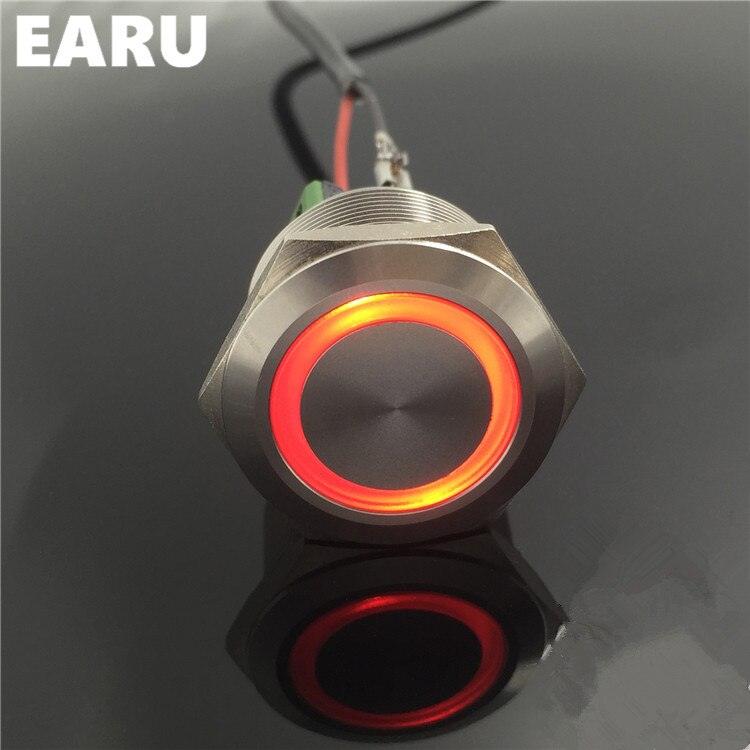

2NO 2NC 25mm Metal Latching LED Push Button Switch

SPECIFICATIONS

2NO 2NC 25mm Metal Stainless Steel Latching Doorebll Bell Horn LED Push Button Switch Car Auto Engine Start PC Power Starter

Warranty: 1

Unit Type: piece

Switch Type: Push Button Switch

Package Weight: 0.75kg (1.65lb.)

Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)

Material: Stainless steel

Item Type: Switches

Item Type: Switches

Certification: ce,CCC,ROHS

Brand Name: EARUELETRIC

Install diameter:25mm

Switch rating: 3A/250VAC

Shape: Flat head

Color: Red-Green(From '+' to '-' is Red color, From '-' to '+' is Green color)

  (Other dual color can be choose)

Noted:To change the color of the led, the polarity of the led pins need to be interchanged.

Voltage: from 2.8V to 250V

Function: Latching (2NO2NC)

Terminal: Pin terminal

Crust material: Stainless steel

  IP rating: IP65

Temperature: - 40 to 75 Degree
