  • 1set GX16-2/3/4/5/6/7/8/9 Pin Male & Female Diameter 16mm Wire Panel GX Connector.
1 7

electrical center b2c

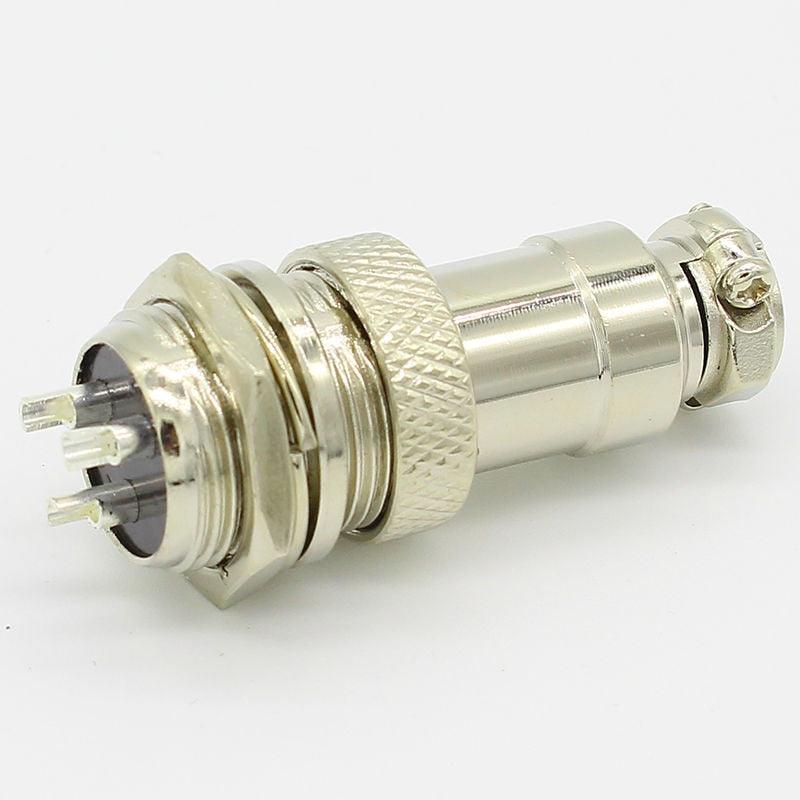

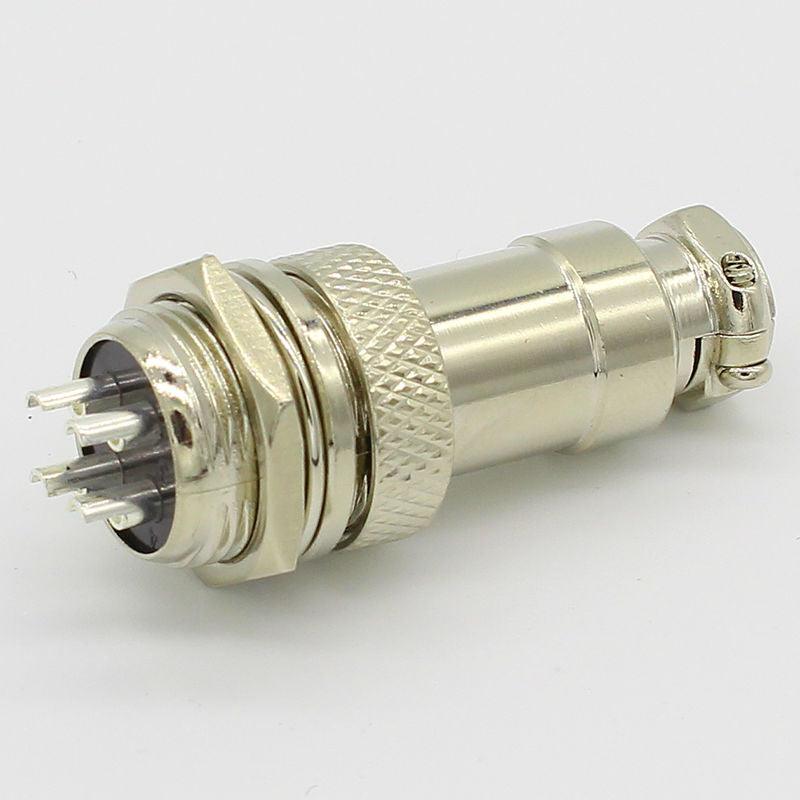

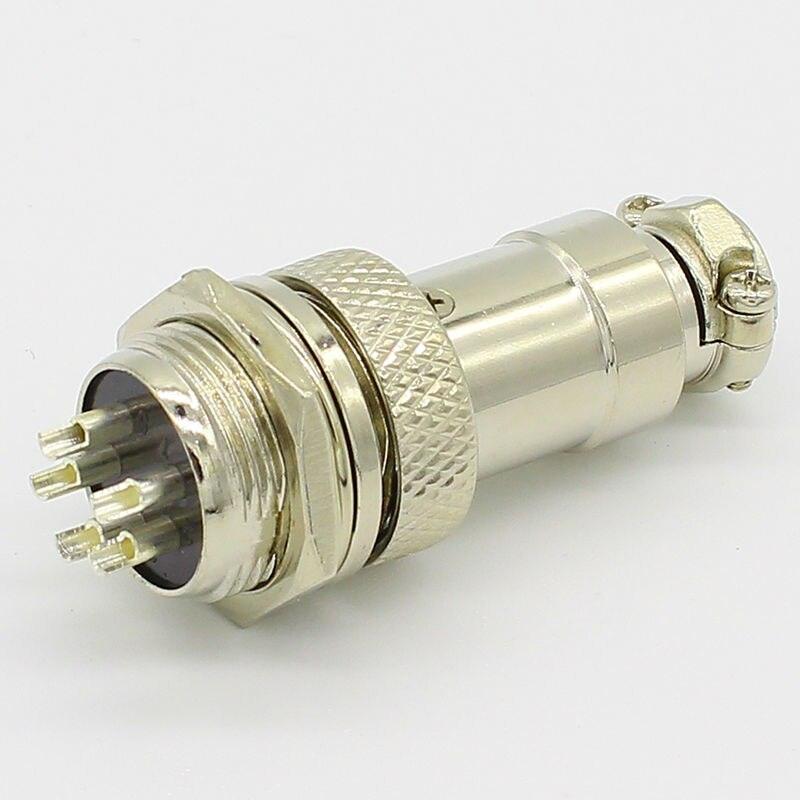

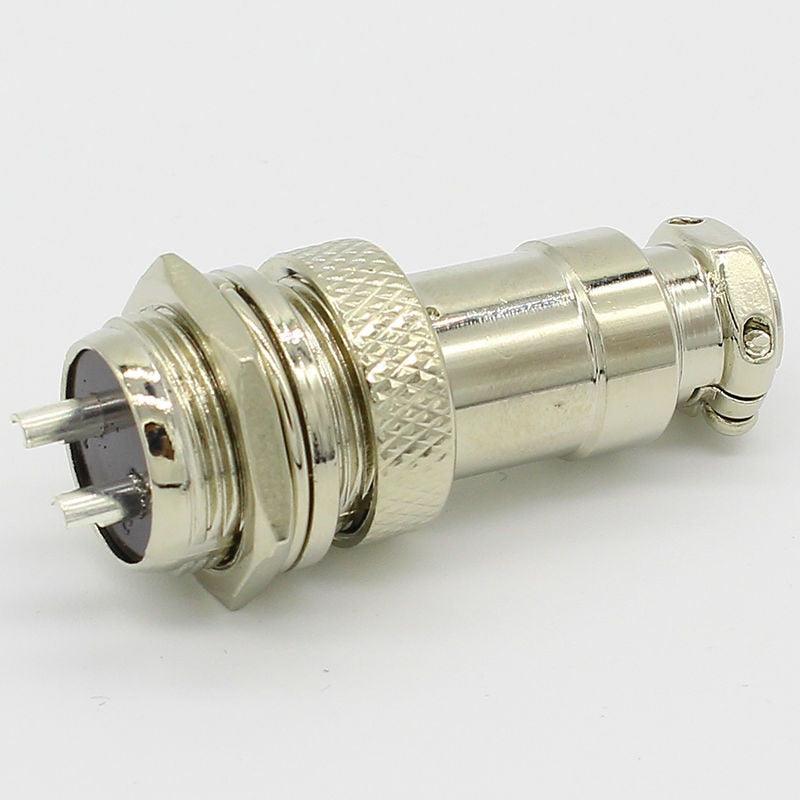

1set GX16-2/3/4/5/6/7/8/9 Pin Male & Female Diameter 16mm Wire Panel GX Connector

$3.00 USD
$1.79 USD $3.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

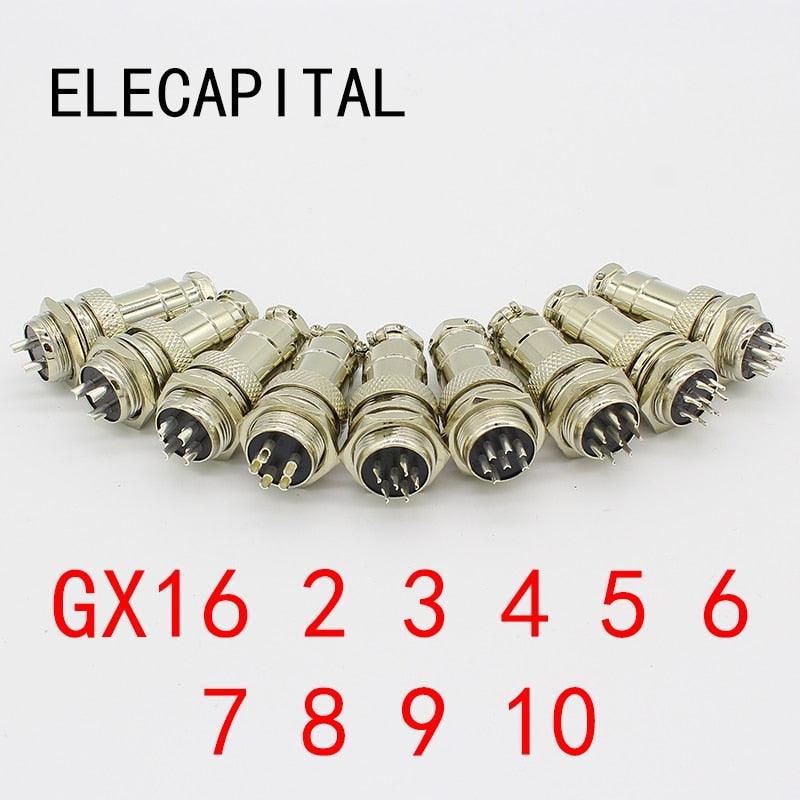

1set GX16-2/3/4/5/6/7/8/9 Pin Male & Female Diameter 16mm Wire Panel Connector GX16 Circular Connector Aviation Socket Plug gx connector

Model Number: GX16 2-10

Certification: CE

Brand Name: ELECAPITAL

Description:

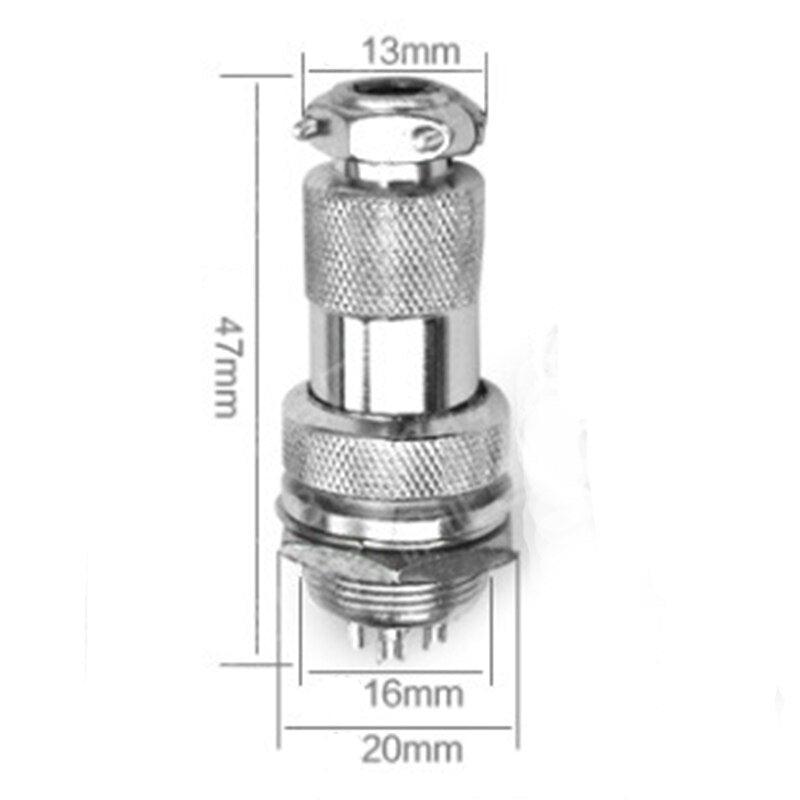

Diameter :16mm
Environmental conditions
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2
Main technical characteristics
Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
Test voltage: (50Hz, RMS) In normal conditions, 2 core /3 core/ 4 core-1500V,  5pin/ 7pin -1200V,
                                          After constant warm test, 2 pin/ 3 pin /4 pin -1200V, 5pin /7pin- 1000V
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single
foot separation Force
Temperature Rise: at rated load, the contact of the temperature rise should not exceed  +50 C ambient temperature

Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged.11
