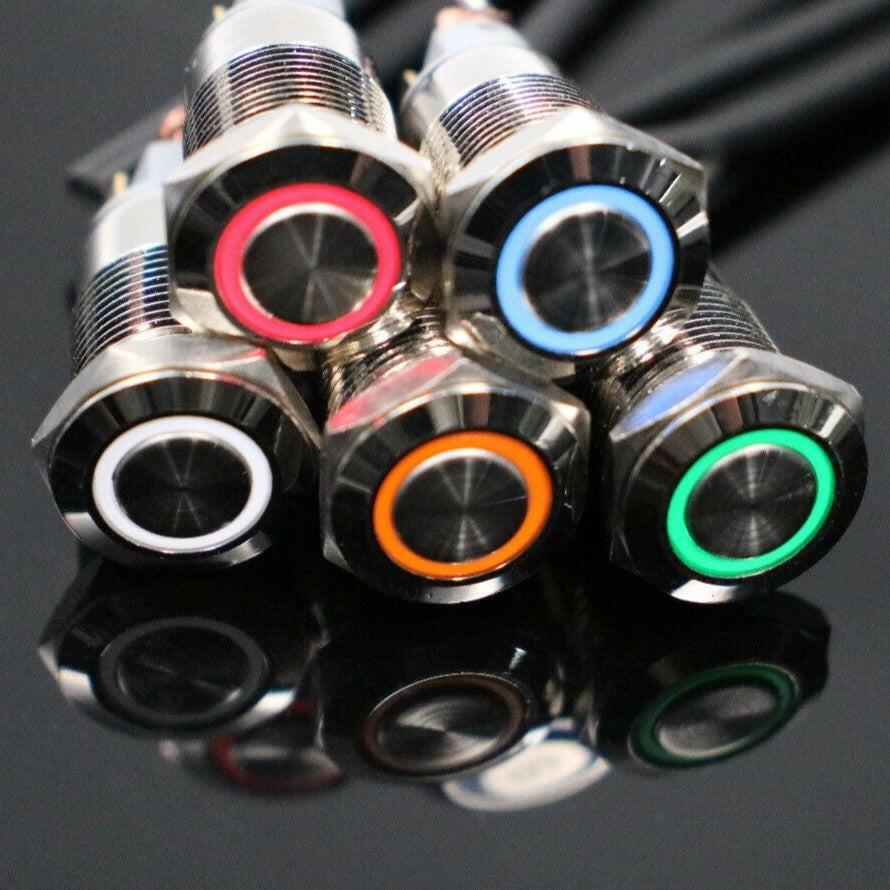

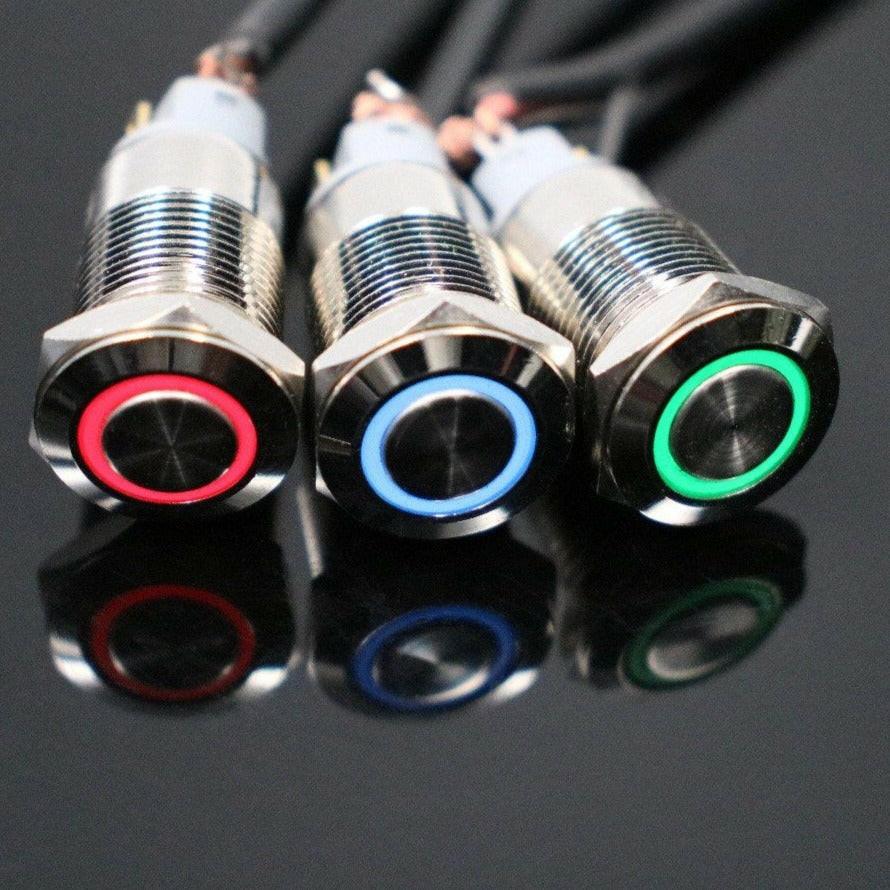

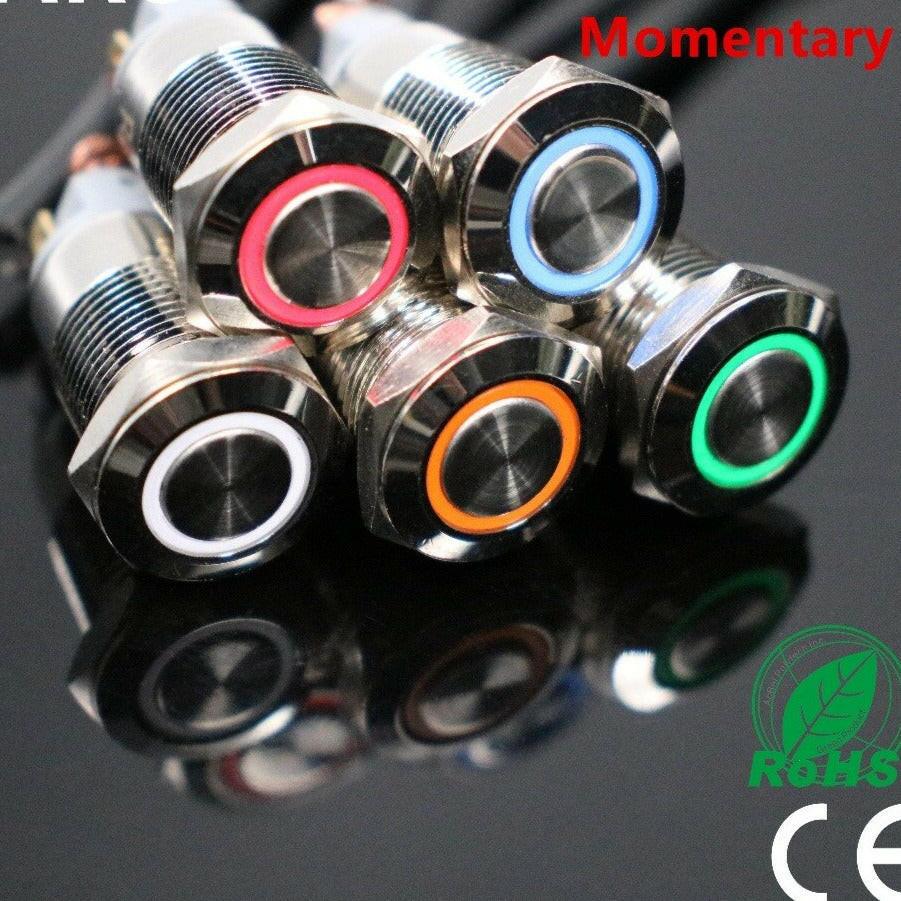

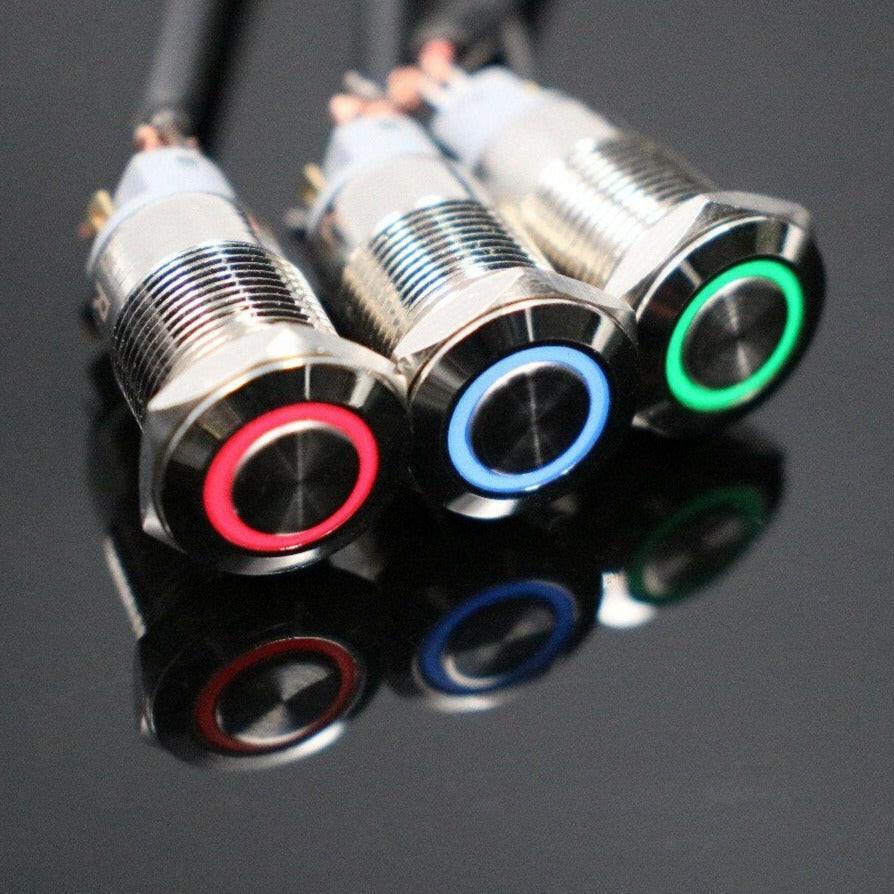

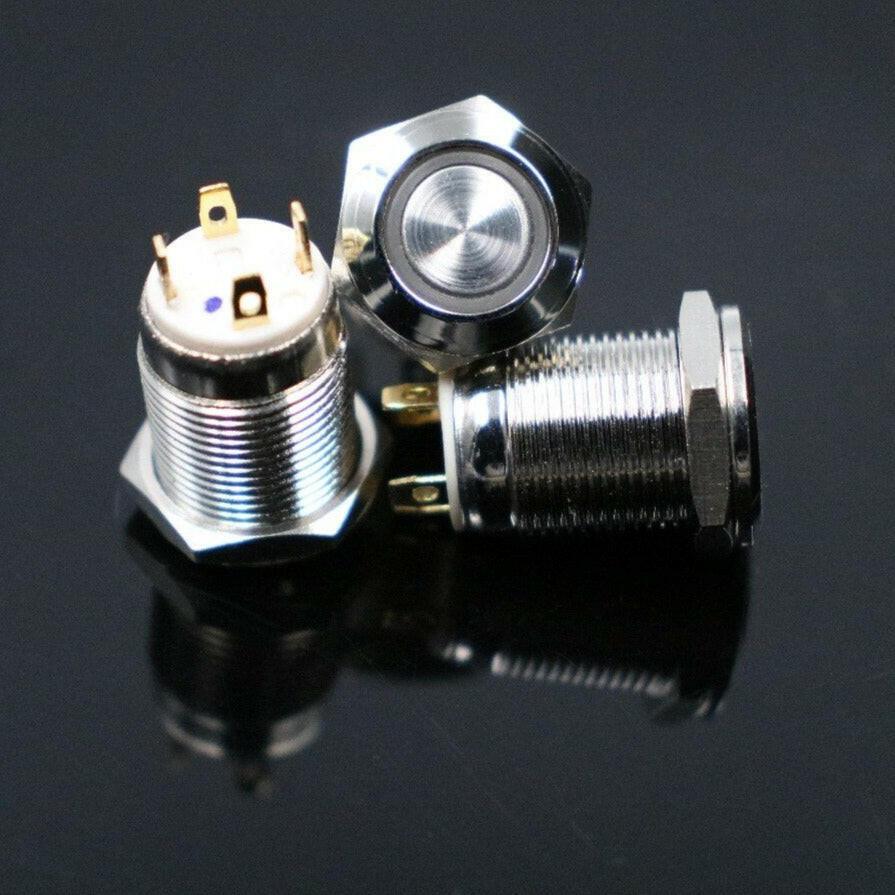

1PCS 12MM with LED 3V 5V 12V 24V 220V Metal Button Switch Momentary

SPECIFICATIONS

1PCS 12MM with LED 3V 5V 12V 24V 220V Metal Button Switch Momentary push button 220v push button switch

auto reset waterproof illuminated Red Blue Green

Warranty: 1

Voltage: 6V,12V, 24V

Switch Type: Push Button Switch

Operating Temperature: -25°C to +55°C

Operating Humidity: 45 to 85% RH

Model Number: 12mm Push Button Switch

Minimum Applicable Load: 5V AC/DC, 1mA

Material: Stainless steel

Item Type: Switches

Insulation Resistance: 100MΩ minimum (500V DC megger)

Features: Momentary Lighting

Electrical Life: 100,000 operations minimum (at full rated load)

Degree of Protection: IP67, >10g

Contact material: Silver plated

Contact Resistance: 50MΩ maximum

Color: Red,Green,Blue

Certification: ce,UL,CCC

12mm Waterproof Momentary Flat Round Stainless Steel Metal Push Button Switch Colorful LED Light Shine Car Horn Auto Reset

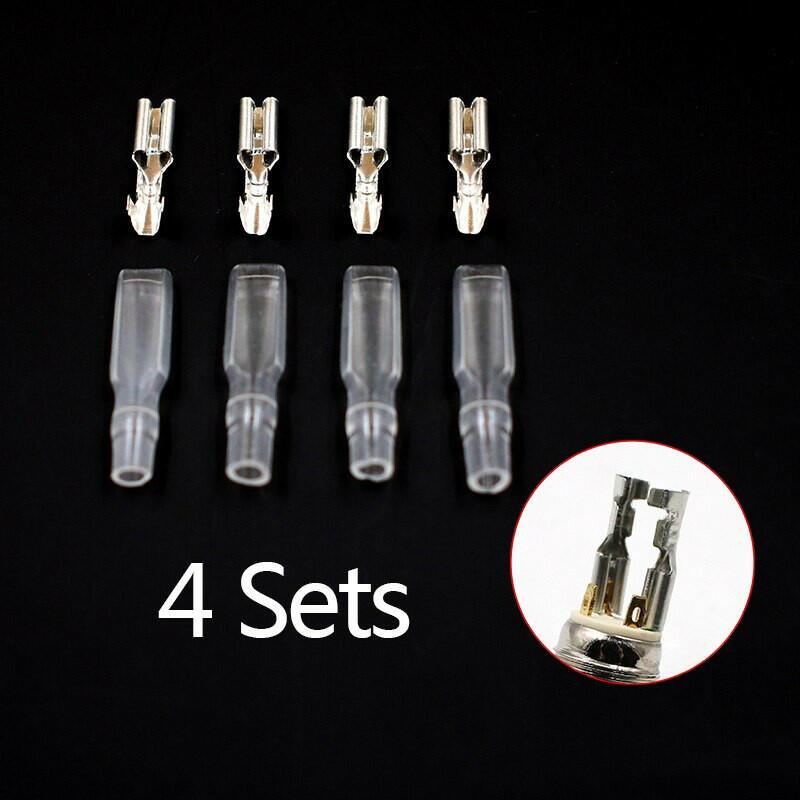

Packet Include: 1pcs Switch

Principle: Automatic Reset; Push is to contact, Let go is to separation
