16mm 19mm NC Normal Push Button Switch Momentary Reset Self-reset

$4.88 USD
$4.88 USD
Sale Sold out
Shipping calculated at checkout.
Size
Standard

SPECIFICATIONS

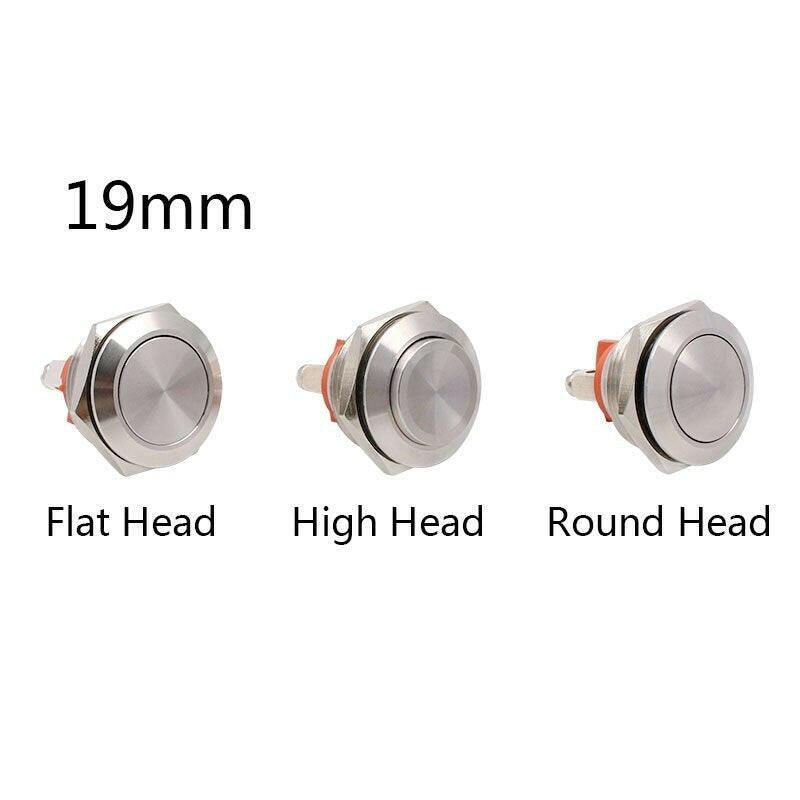

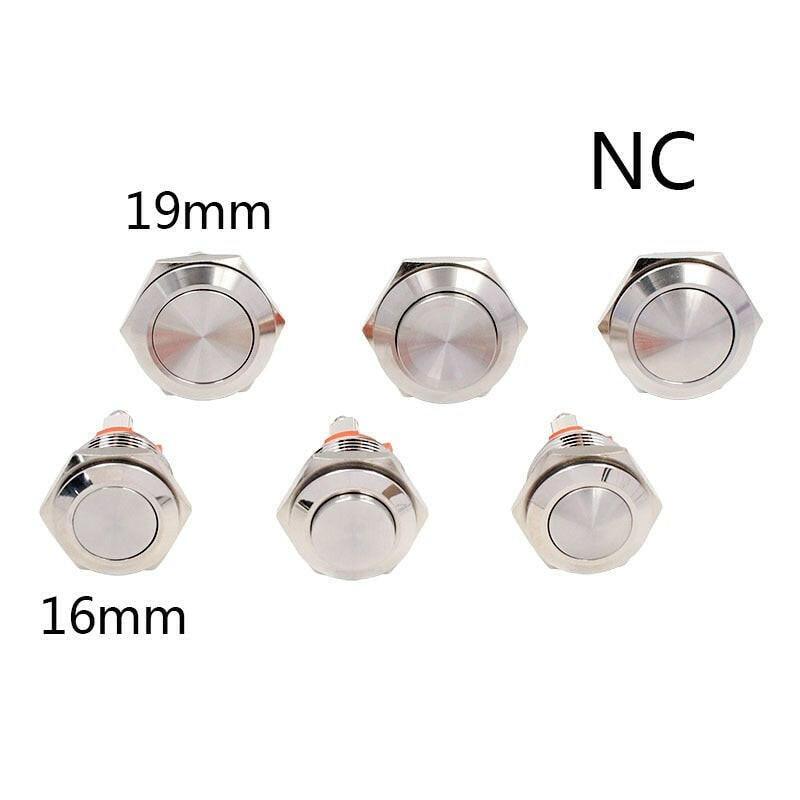

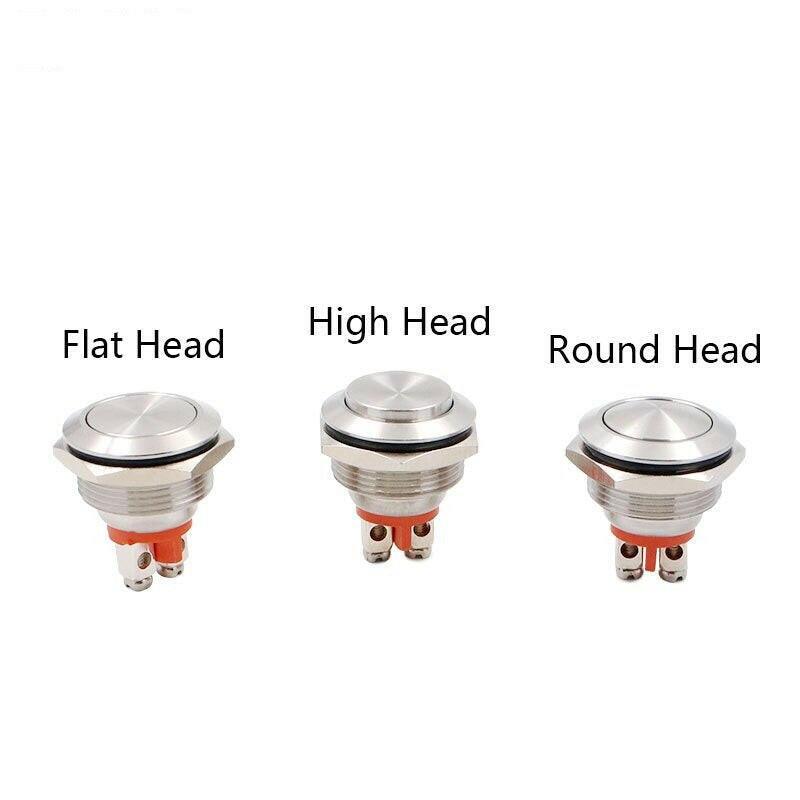

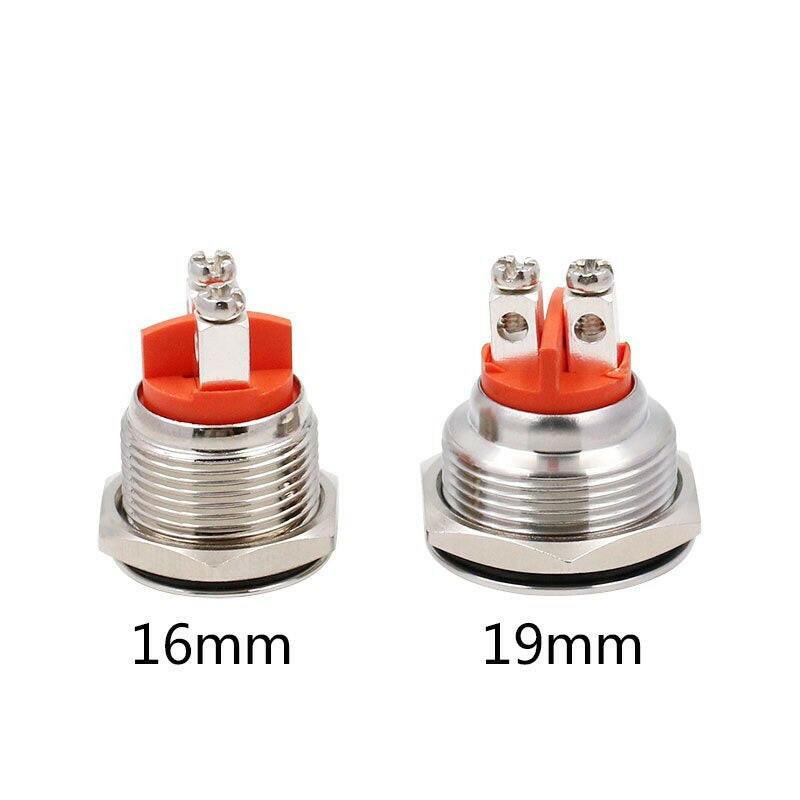

16mm 19mm NC Normal Close Metal Push Button Switch Momentary Reset

Self-reset Brass Nickel Plated Screw Round Flat High Head

Warranty: 1 years

Switch Type: Push Button Switch

Material: Copper

Item Type: Switches

Certification: CCC,ce

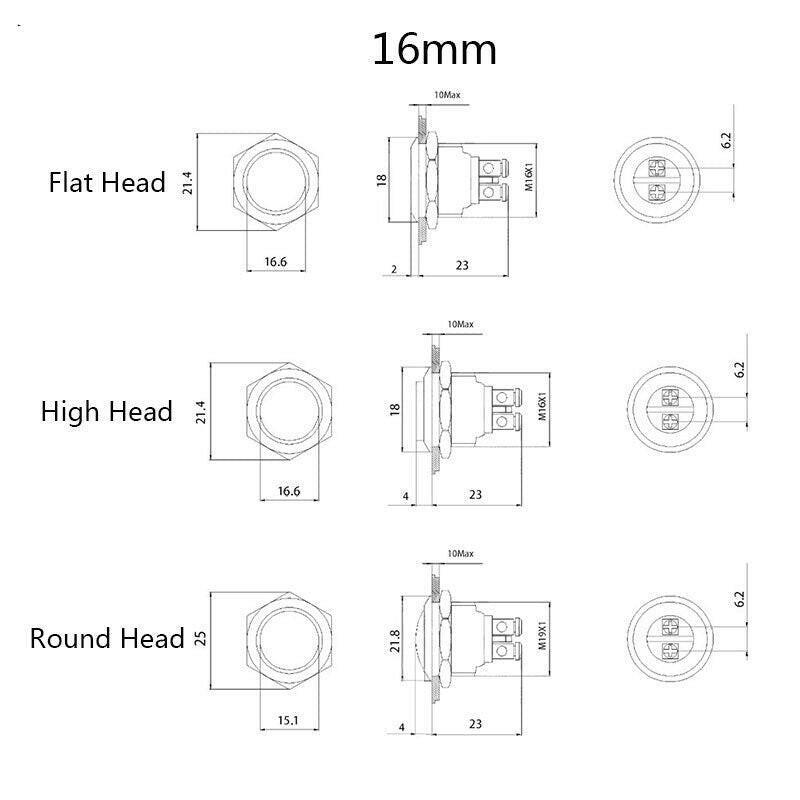

Features: 100% brand new and high quality This switch can be used for circuit control in electromagnetic starter, contactor, relay and other electric circuits Specificatios: Mounting Cut Hole: 16mm Operation Type: Momentary (Self Return) Switch Contact: 1NC (Normally Close) Head Shape: Flat Max Switch Rating: 3A/250VAC Terminal Type: Screw Body Material: Brass Nickel Plated Button Material: Brass Nickel Plated Protection Rating: IP67/IK08 Operation Temperature: -20C- 55C Panel Thickness: 1 - 6mm Size: 24mm x 18mm Package Content: 1 x Metal Push Button Switch
