12V 24V BLDC High Speed Motor 8700rpm Brushless Motor 2418 Shaft Length 22mm PWM Speed Controller Reverse CW CCW Brake
Regular price
$28.81 USD
Regular price
$28.18 USD
Sale price
$28.81 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
12V 24V BLDC High Speed Motor 8700rpm Brushless Motor 2418 Shaft Length 22mm PWM Speed Controller Reverse CW CCW Brake
Brand Name: HYSMOTOR
Origin: Mainland China
How to buy the products you need

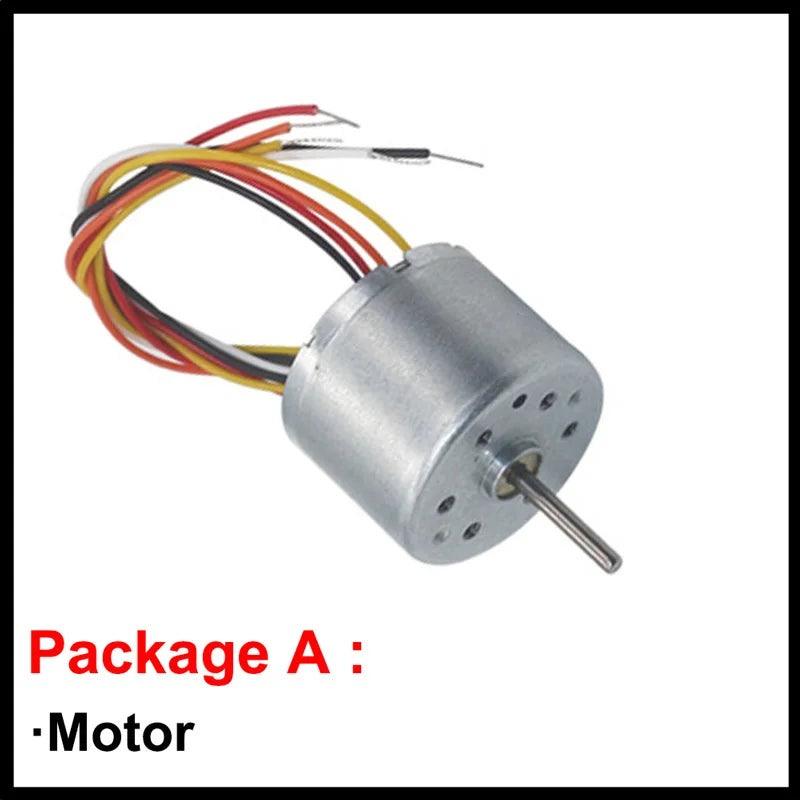

Package A : You will receive a motor

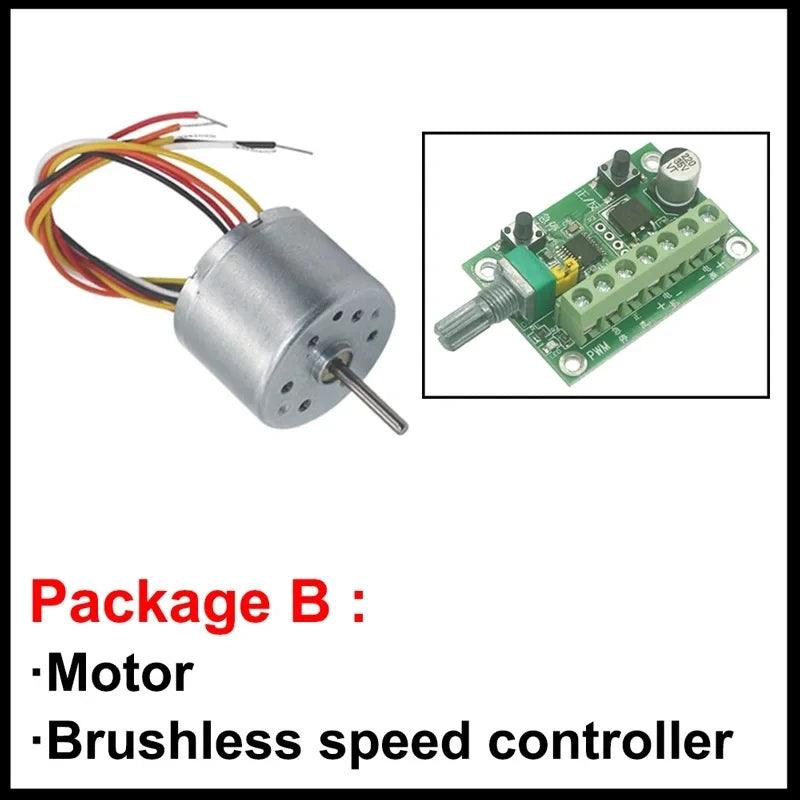

Package B : You will receive a motor and a brushless controller;
This controller can more easily control the speed of the motor; rotate clockwise or counterclockwise;
The size is for reference only,the measurement will be slightly different,please pay attention before buying
The following is a description of the quality materials and structures of this motor.
1. Motor center output shaft
2. The internal structure of the motor
3. Bottom cover design
4. Line port
Introduction of the motor
1. The diameter of the shaft : 2mm
2. The length of the shaft : 21mm
3. Input voltage : DC 24V
4. No load speed : 8700 RPM/MIN
5. Load speed : 6610 RPM/MIN
6. Out power at maximum efficiency : 2.28W
7. Torque at maximum efficiency : 0.034 KG.CM
8. Direction of rotation of the motor : CW Or CCW ; Support Reversed
9. The type of bearing : Sleeve
10. The life of the motor : 10000 hours (Normal use)
11. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.

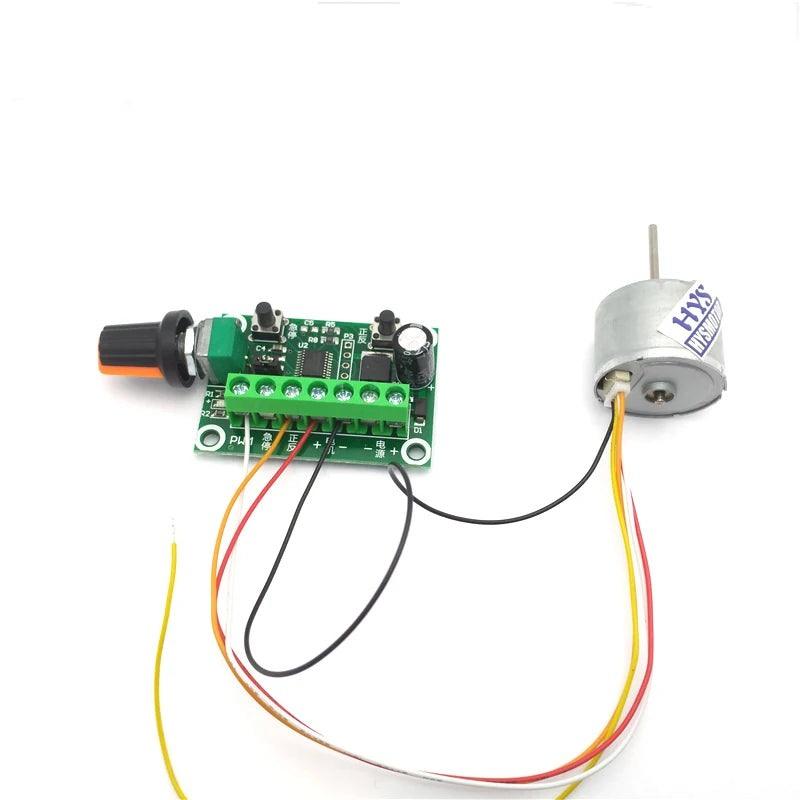

Wiring method introduction
Black line : Connect DC power supply negative - (Prohibit errors)
Red line: Connect DC power supply positive + (Prohibit errors)
Yellow line: Signal line, the motor rotates one turn and output 18 pulse signals
White line: Duty cycle, pulse width speed regulation 15-25khz
Orange line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the orange line to the black line and the motor will change the direction of rotation immediately. ( Overcurrent protection 0.8A; once the current is exceeded, the motor will stop working immediately, and the motor can be re-run after the power is connected again.)
